| Feature | Details |
|---|---|
| Weight | 0.038 kg |
| Dimensions (L × W × H) | 61 × 59 × 36 cm |
| Feature | Details |
|---|---|
| Channels | 15.4 |
| Object-Based Configuration | 9.4.6 |
| Power Output (2-Channel Driven) |
150 W @ 8 Ω / 20 Hz – 20 kHz / 0.05% THD 190 W @ 6 Ω / 1 kHz / 0.7% THD |
| Power Output (1-Channel Driven) | 260 W @ 6 Ω / 1 kHz / 10% THD |
| Feature | Details |
|---|---|
| DTS Compatibility | DTS Neural:X, DTS Virtual:X, DTS-HD Master Audio, DTS:X, DTS:X Pro, IMAX Enhanced |
| Dolby Compatibility | Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Surround, Dolby TrueHD |
| Auro-3D Support | Yes |
| Upmixing Technology | Dolby Surround, DTS Neural:X, DTS Virtual:X, Dolby Atmos Height Virtualization |
| Supported File Formats | AAC, ALAC, FLAC, MP3, WAV, WMA |
| Feature | Details |
|---|---|
| HDR Support | HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma |
| Pass-Through Support | 8K |
| Upscaling | No |
| GUI | Yes |
| HDCP Support | Yes, Version 2.3 |
| HDMI Compression Modes | 4K120AB / 8K60AB |
| Audio Return Channel | ARC / eARC |
| HDMI CEC | Yes |

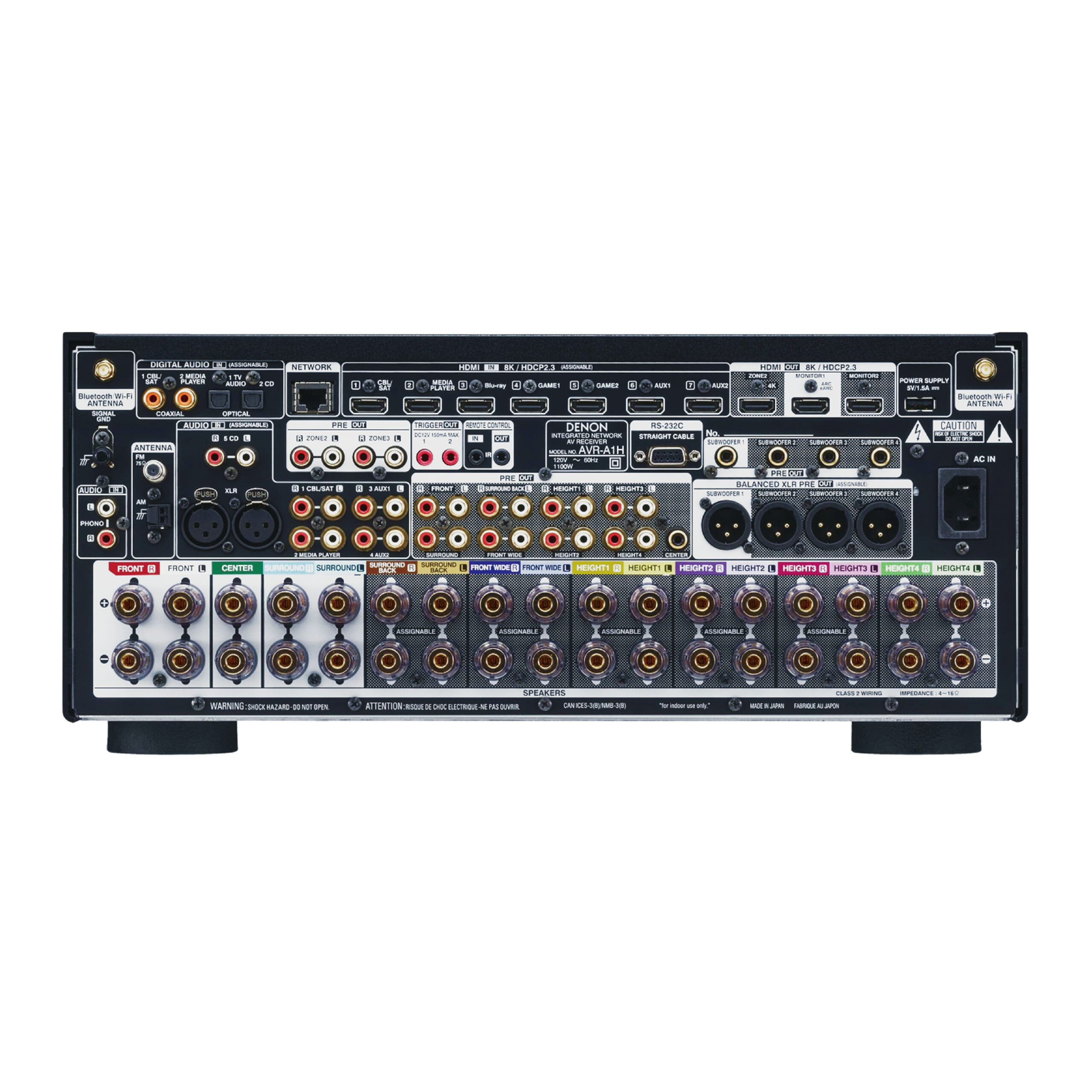

| Connection | Details |
|---|---|
| HDMI Inputs | 7 × HDMI |
| Optical Inputs | 2 × Optical TOSLINK |
| Digital Coaxial Inputs | 2 × Digital Coaxial |
| Stereo RCA Inputs | 5 × Stereo RCA Line |
| Balanced XLR Input | 1 × Stereo XLR Balanced Line |
| Phono Input | 1 × Stereo RCA (Phono) with Ground Screw |
| Connection | Details |
|---|---|
| HDMI Outputs |
2 × HDMI 2.1 1 × HDMI Zone 2 |
| RCA Pre-Out | 1 × 17-Channel RCA Pre-Out |
| Zone 2 / Zone 3 Pre-Out | 2 × Stereo RCA Zone 2 / Zone 3 |
| XLR Subwoofer Pre-Out | 4 × Mono XLR Subwoofer Pre-Out |
| RCA Subwoofer Pre-Out | 4 × RCA Subwoofer Pre-Out |
| Connection | Details |
|---|---|
| USB Input | 1 × USB-A |
| Setup Mic Input | 1 × 3.5 mm |
| Headphone Output | 1 × 6.35 mm |
| Connection | Details |
|---|---|
| AM Input | 1 × AM Block Input |
| FM Input | 1 × FM Coaxial F-Type |
| Bluetooth / Wi-Fi Antenna | 2 × Coaxial F-Type |
| Ethernet | 1 × RJ45 |
| 12V Trigger Output | 2 × 3.5 mm |
| Remote Input / Output |
1 × 3.5 mm Input 1 × 3.5 mm Output |
| RS-232C | 1 × DE-9 |
| USB Power Output | 1 × USB-A |
| Power Input | 1 × NEMA 1-15 |
| Feature | Details |
|---|---|
| Speaker Outputs |
17 × Binding Post Pairs (Front, Center, Height, Height 2, Rear, Rear Surround) |
| A/B Speaker Selection | Yes |
| Bi-Amp Capability | Yes |
| Feature | Details |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Wireless Audio Protocols | AirPlay 2, HEOS, Roon Ready, Spotify Connect |
| Virtual Assistant Support | Alexa Built-in, Google Assistant Built-in |
| Feature | Details |
|---|---|
| Tuner Type | AM / FM |
| Mode | Power Consumption |
|---|---|
| Active | 900 W |
| No Sound (ECO On) | 70 W |
| No Sound (ECO Off) | 125 W |
| Standby | 0.1 W |
| CEC Standby | 0.5 W |
| Network Standby | 2 W |
| Feature | Details |
|---|---|
| Dimensions (Antenna Down) |
17.1 × 7.7 × 19.6 in 43.4 × 19.6 × 49.8 cm |
| Dimensions (Antenna Up) |
17.1 × 10.2 × 19.4 in 43.4 × 25.9 × 49.3 cm |
| Dimensions (Antenna Removed) |
17.1 × 7.7 × 19.4 in 43.4 × 19.6 × 49.3 cm |
| Weight | 70.5 lb / 32 kg |
| Package Weight | 83.3 lb |
| Box Dimensions (L × W × H) | 23.5 × 22.5 × 14 in |
