Up to 140W per Channel at 8 Ohms
8K HDR Video with 3D Audio
8K Pass-Through & Upscaling
HEOS Built-In Multi-Room Streaming
Wi-Fi, Ethernet, and Bluetooth Streaming
Audyssey Room Calibration
Dolby Atmos & DTS:X Surround
IMAX Enhanced & Auro 3D Support
Two Source Two-Zone Audio
Josh.ai & Apple Siri Voice Control

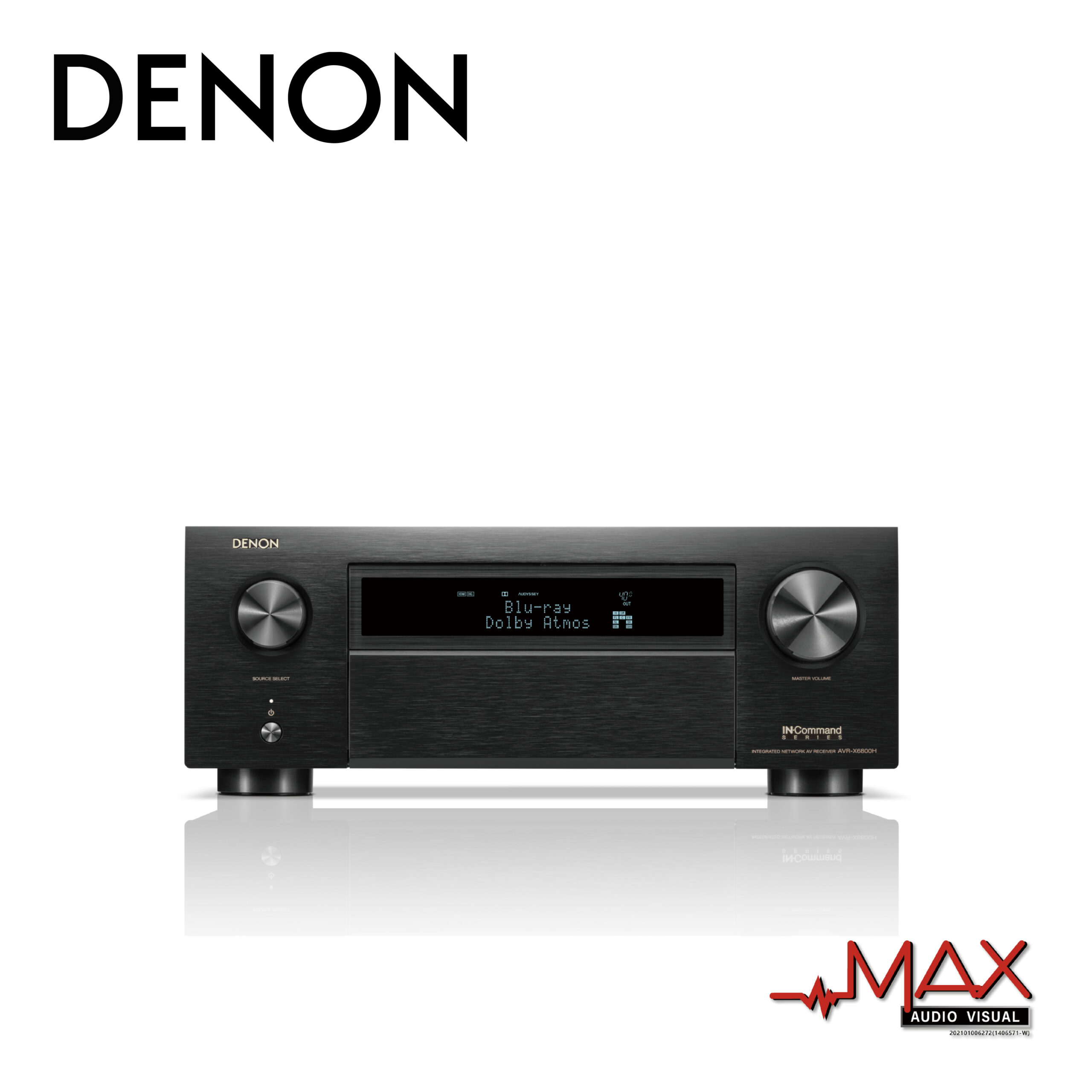

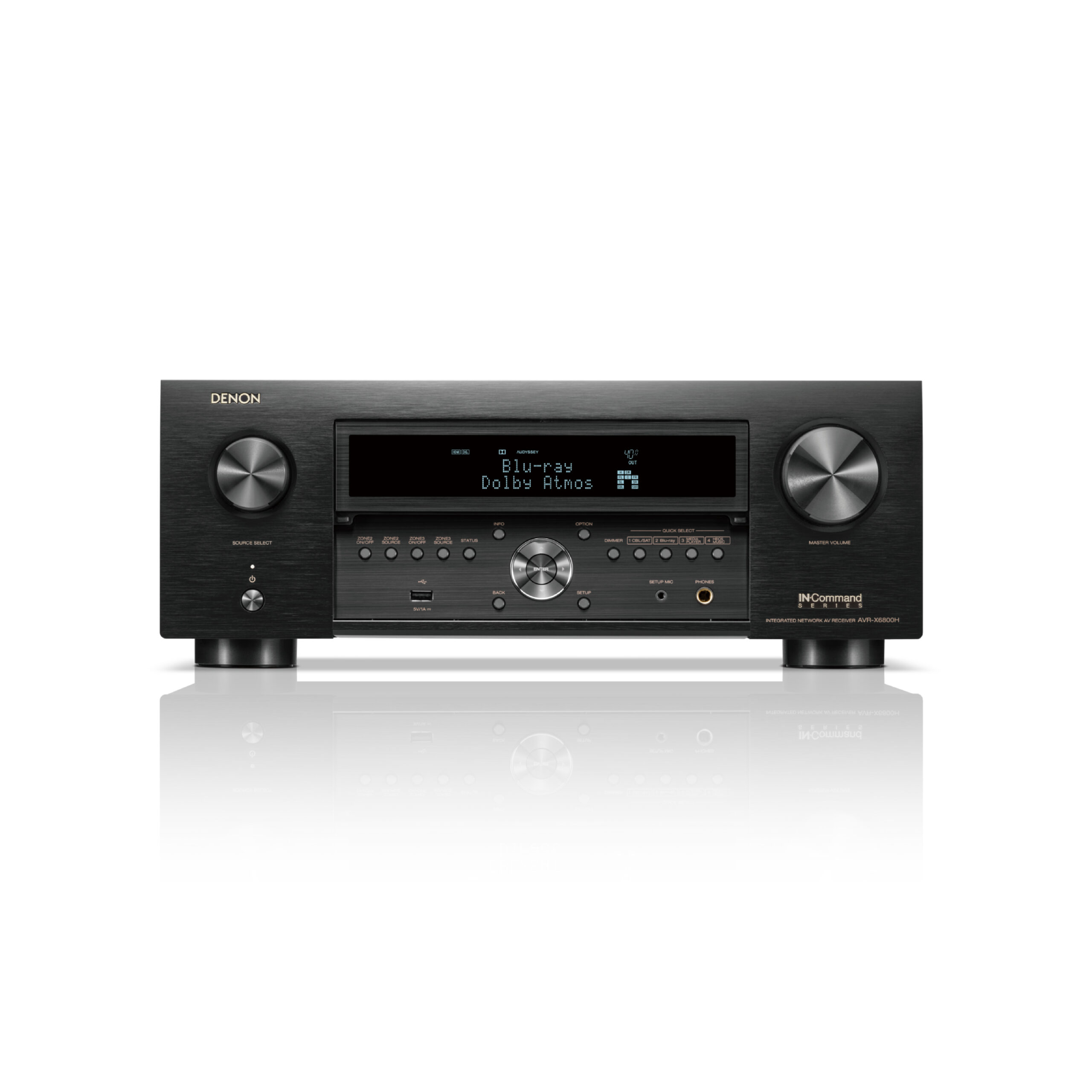

8K video and 3D audio experience from an 11.4 channel receiver.
Designed and manufactured in Japan, the AVR-X6800H drives 11.4 channels of amplification for an upscaled experience. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X6800H envelops larger living spaces in breathtaking 3D audio. With HEOS® Built-in, wirelessly stream your favorite music.
Maximize your entertainment with a full suite of audio and video technologies plus smart features.
| Feature | Details |
|---|---|
| Number of Power Amps | 11 |
| Power Output (8Ω, 20Hz–20kHz, 0.05% 2ch Drive) | 140 W per channel |
| Power Output (6Ω, 1kHz, 0.7% 2ch Drive) | 175 W per channel |
| Power Output (6Ω, 1kHz, 10% 1ch Drive) | 250 W per channel |
| Feature | Details |
|---|---|
| Auto Speaker Setup | By Microphone |
| Room Calibration | Audyssey MultEQ XT32 |
| Dirac Live | Supported (Upgrade Required) |
| Front Display | 2-Line FLD |
| GUI Languages | English, Spanish, French |

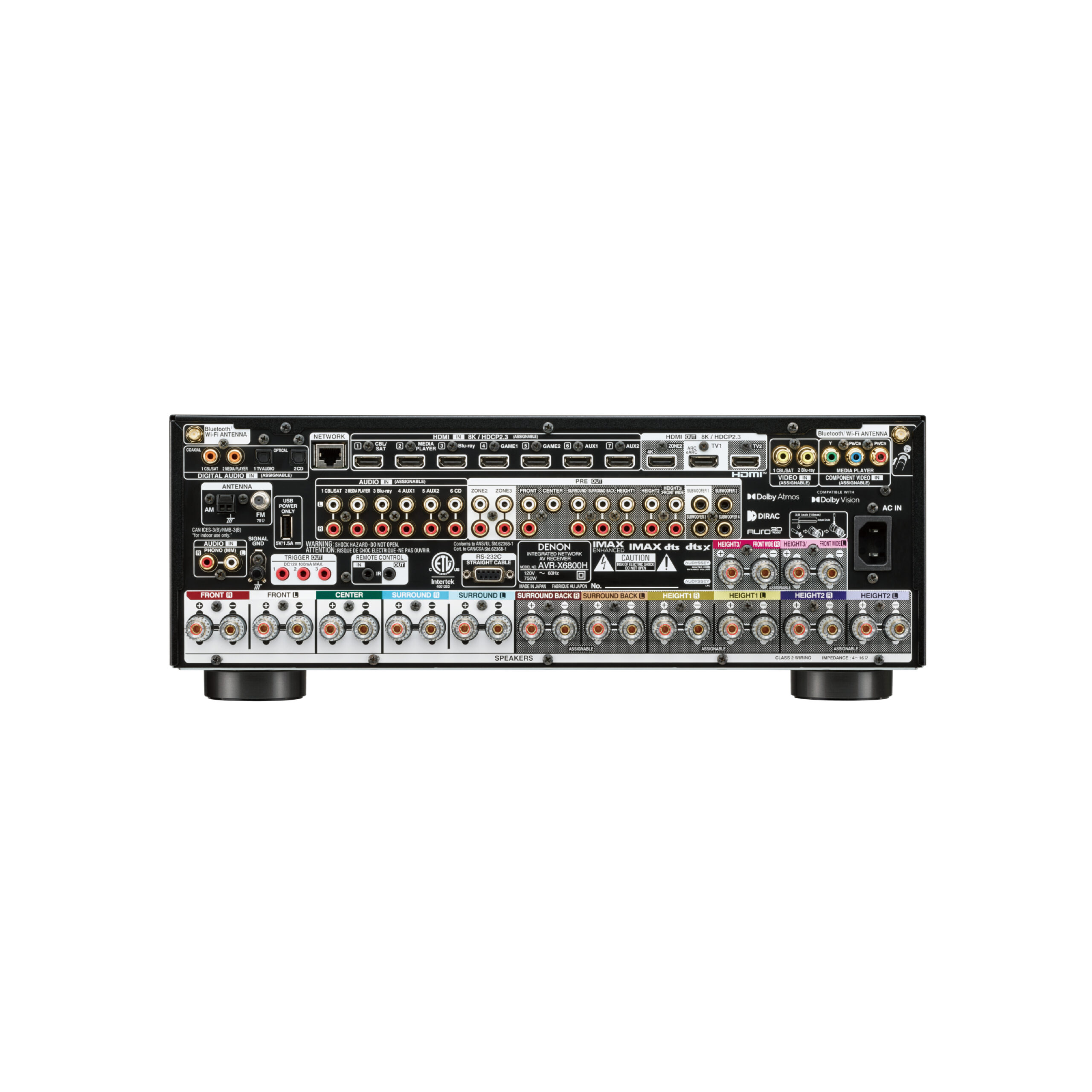

| Connection Type | Details |
|---|---|
| HDMI In / Out | 7 / 3 |
| Analog Audio In / Out | 6 / 0 |
| Phono (MM) Input | Yes |
| Digital Input (Optical / Coaxial) | 2 / 2 |
| Multi-Room Output (Analog / Digital) | 2 / 0 |
| Multichannel Pre-Out | Yes (13.4) |
| Subwoofer Outputs | 4 Independent Outputs |
| Feature | Details |
|---|---|
| Speaker Terminals | 13 |
| Speaker A/B Assignable | Yes |
| Bi-Amp Drive Assignable | Yes |
| Multi-Room Speaker Terminal Assignable | Yes |
| Feature | Details |
|---|---|
| Remote Control | RC-1256 |
| Power Consumption | 750 W |
| Power Consumption (No Sound, ECO On / Off) | 65 W / 110 W |
| Standby Consumption | 0.1 W |
| CEC Standby Consumption | 0.5 W |
| Network Standby Consumption | Less than 2.0 W |
| Dimensions (Without Antenna) | 17.1 × 14.9 × 6.6 in (W × D × H) |
| Dimensions (Antenna Horizontal) | 17.1 × 15.3 × 6.6 in (W × D × H) |
| Dimensions (Antenna Vertical) | 17.1 × 15.3 × 9.3 in (W × D × H) |
| Weight | 34.4 lbs |
| Weight (Packaging) | 40.1 lbs |
