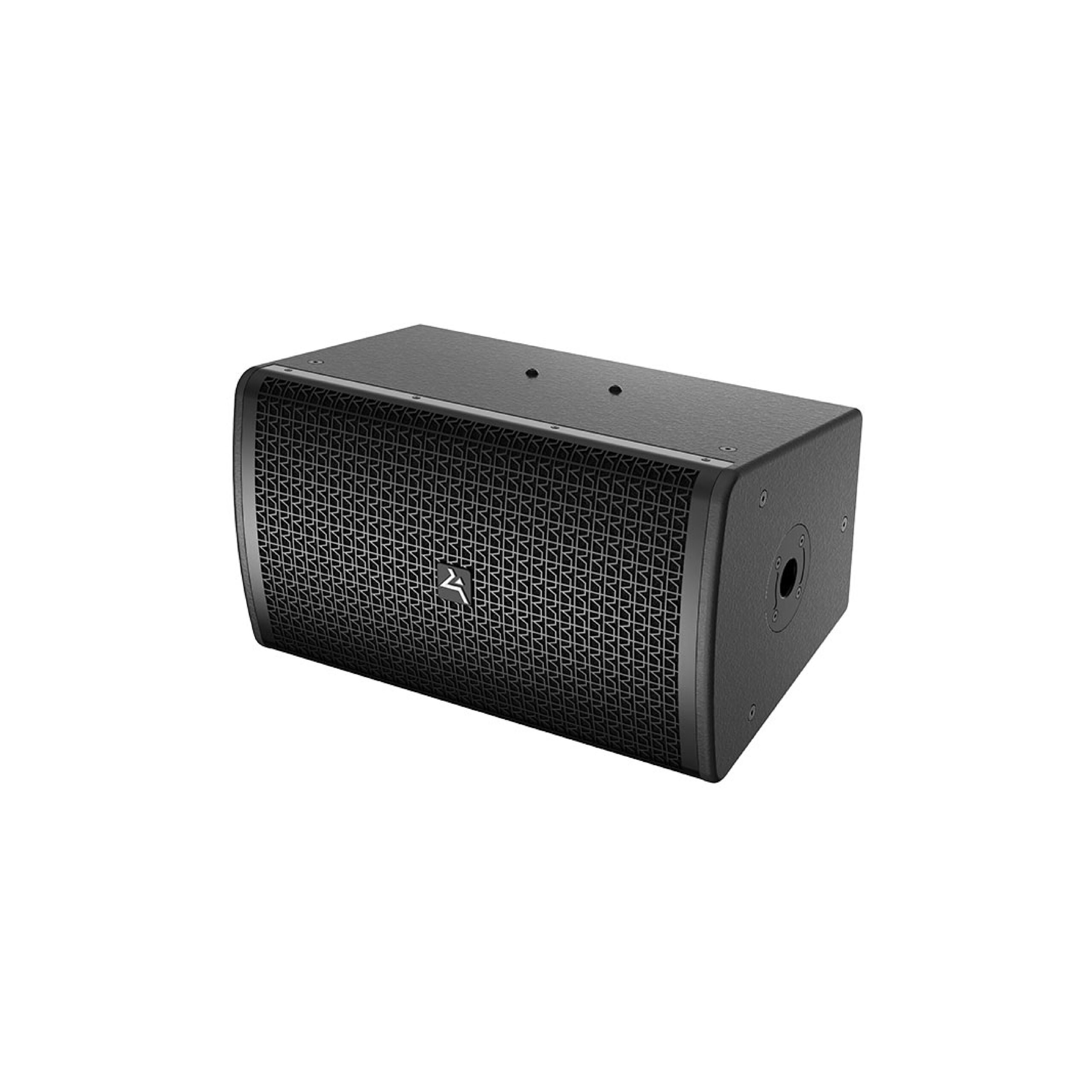

CK-10 is a high-performance, compact rear-ported speaker designed for use in venues like party-style KTV, KTV sound reinforcement, bars, nightclubs, and similar locations. It offers a very smooth frequency response range from 55Hz to 20kHz (-10dB) with a phase curve. The CK-10 enclosure features a trapezoidal design, housing a 10-inch woofer with a 63.5-core voice coil and a 1.75-inch ferrite tweeter mounted on the front. The tweeter is equipped with a 100° (H) × 70° (V) constant directivity horn.

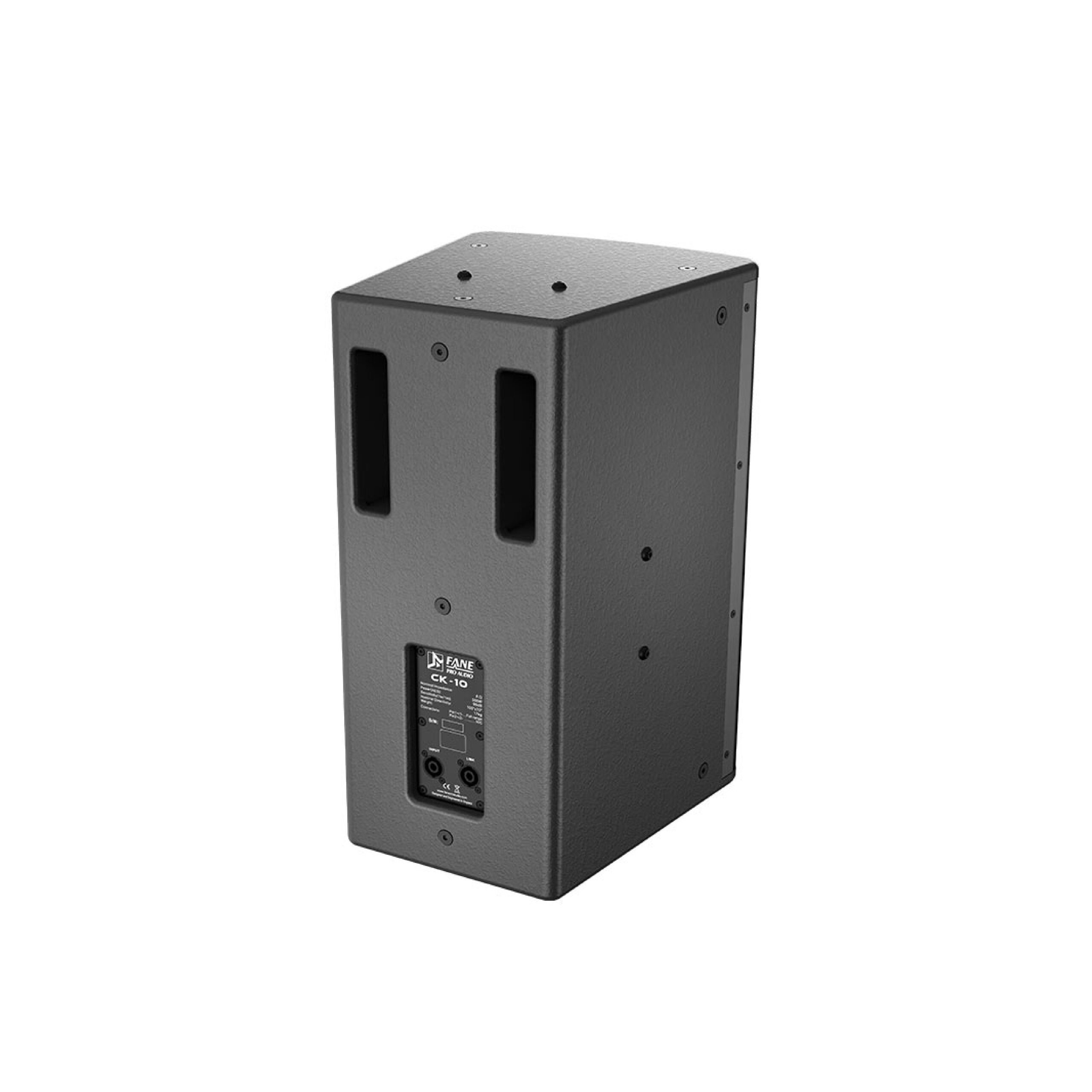

The top and sides of the speaker are designed with M10 mounting holes for suspension installation, and the bottom support frame base serves various purposes. The CK-10 speaker has a sensitivity of 96dB, an AES power of 350W, and utilizes a compact enclosure design with rear-ported ports. This design significantly reduces the group delay of the low-frequency range, enhancing the sense of speed in the low frequencies and reducing nonlinear distortion. As a result, it achieves a balance between speed, power, and thickness in the low frequencies, delivering a powerful and elastic low-frequency effect and ensuring exceptional performance in any environment.
| Feature | Details |
|---|---|
| Power Handling | 350 W (AES) |
| Program Power Handling | 700 W |
| Peak Power Handling | 1400 W |
| Nominal Impedance | 8 Ω |
| Average Sensitivity | 96 dB @ 1W/1m |
| Calculated Max SPL / 1m | 121 dB (continuous) |
| Max SPL (Program) | 124 dB (program) |
| Max SPL (Peak) | 127 dB (peak) |
| Manufacturing Consistency | 200 Hz to 10 kHz (±3 dB) |
| Nominal Directivity (-6dB) | 100° (H) x 70° (V) |
| Recommended Amplifier | ≥ 800 W @ 8Ω (no clip) in specified frequency response |
| Recommended Low Cut (Full Range) | 55 Hz, 18 dB/oct Butterworth |
| Recommended Low Cut (with sub) | 70 to 140 Hz, 24 dB/oct Linkwitz-Riley |
| Low Frequency Driver | Precision Devices ferrite transducer, 8Ω, 10” (250 mm) diameter, 2.5” high temperature voice coil on glass fibre former |
| High Frequency Driver | Precision Devices neodymium compression driver, 25 mm throat size, 1.75” (44 mm) voice coil, 8Ω |
| Nominal Size | 10-inch |
| Type | Two-way, Passive |
| Frequency Response (±3dB) | 80 Hz – 19 kHz (±3 dB) |
| Frequency Response (-10dB) | 55 Hz – 20 kHz (-10 dB) |
| Feature | Details |
|---|---|
| Pole Mount | 35mm |
| Flying Hardware | 13x M8 Internal mounting brackets, 6x M10 Internal mounting brackets |
| Connectors | 2 Neutrik Speakon NL4MP |
| Cabinet | CNC made with tongue and groove assembly, 15 mm void-free, exterior grade, birch plywood |
| Finish | Black, water-based paint |
| Cabinet Size (H x W x D) | 555 x 325 x 360 mm |
| Shipping Carton Size (H x W x D) | 635 x 402 x 440 mm |
| Net Weight | 17 kg net |
| Gross Weight | 19 kg gross |
