The SA-10 stands as a testament to FANE’s dedication to delivering high-quality sound solutions for premium KTV venues, upscale clubs, and vibrant nightclubs. This professional-grade, high-power full-range speaker is thoughtfully crafted to elevate audio experiences to new heights.
At its core, the SA-10 features a meticulously engineered 10-inch low-frequency driver with a bespoke 2.5-inch (63.5mm) voice coil from FANE. This pairs harmoniously with a 1.75-inch compression driver that boasts a composite polymer diaphragm, ensuring crisp and precise high-frequency performance. This dynamic duo harmonizes to deliver a seamless frequency response, encompassing a remarkable 55Hz to 20kHz range (-10dB), all while maintaining phase coherence. The high frequencies benefit from a distinctive large horn sporting an unwavering 80° (H) × 60° (V) constant directivity, ensuring consistent sound dispersion.

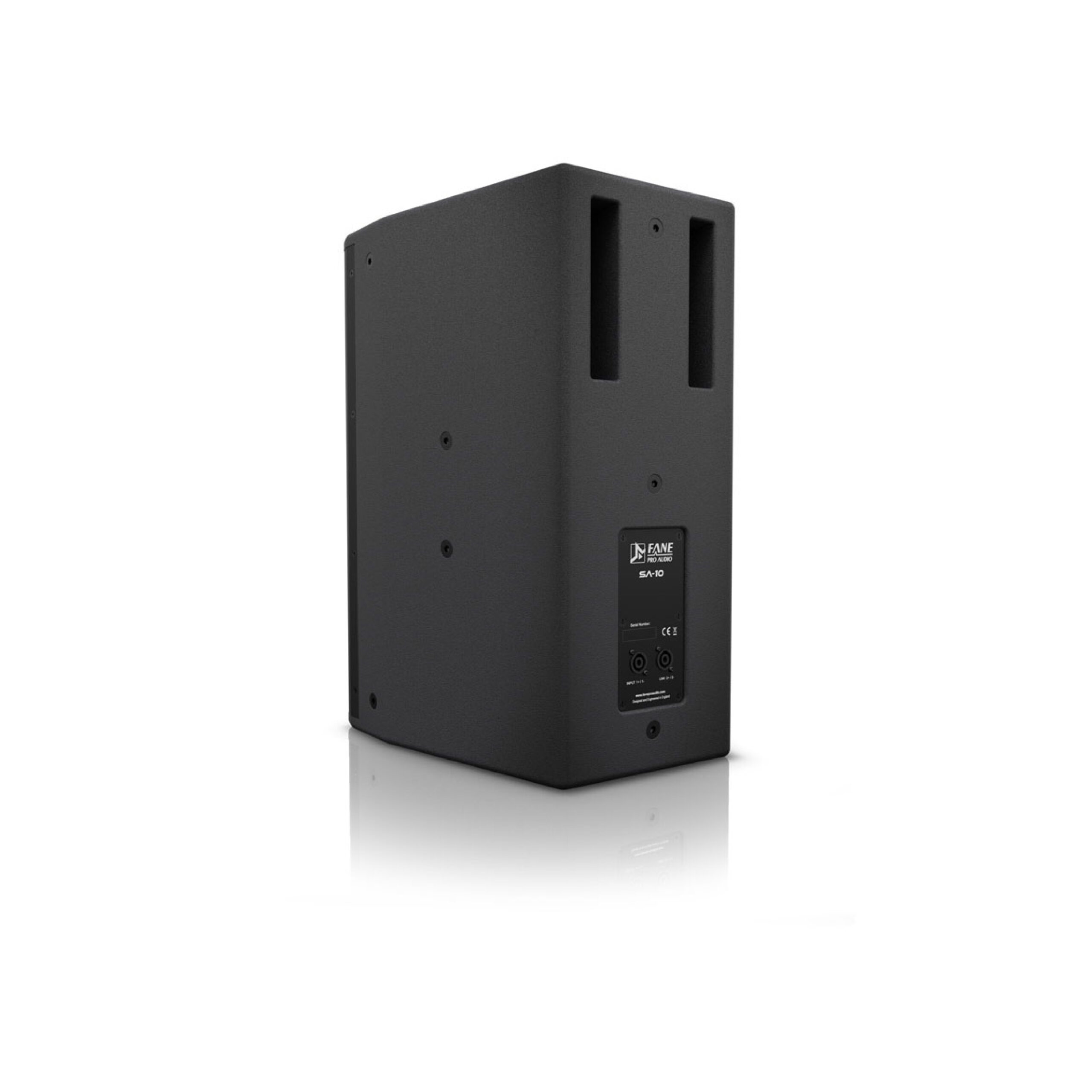

To cater to diverse installation needs, the SA-10 incorporates practical M10 mounting points on its top and sides. Its versatile pole mount further adds to its adaptability. With a remarkable sensitivity of 95dB and an AES power rating of 350W, the SA-10 employs an innovative rear-ported enclosure design. This design choice significantly minimizes group delay in the low-frequency range, elevating the perception of low-frequency speed and minimizing nonlinear distortion. The result is a captivating and agile low-frequency impact that flourishes effortlessly in any acoustic setting.
The SA-10 truly excels in producing rich and inviting mid-low frequencies, which are beautifully complemented by the clarity and vibrancy of its mid-high frequencies. This makes it the perfect choice for luxurious KTV venues, versatile multi-purpose halls, lively dance venues, and the sophisticated ambiance of upscale private KTV rooms. While it shines as a standalone sound reinforcement speaker, its sonic prowess can be further magnified when paired with FPA series subwoofers for an elevated sonic experience.
| Feature | Details |
|---|---|
| Power Handling | 350 W (AES) |
| Program Power Handling | 700 W |
| Peak Power Handling | 1400 W |
| Nominal Impedance | 8 Ω |
| Average Sensitivity | 95 dB @ 1W/1m |
| Calculated Max SPL / 1m | 120 dB continuous |
| Max SPL (Program) | 123 dB (program) |
| Max SPL (Peak) | 126 dB (peak) |
| Frequency Response (-6dB) | 50 Hz – 18 kHz |
| Manufacturing Consistency | 200 Hz to 10 kHz (±3 dB) |
| Nominal Directivity (-6dB) | 80° (H) x 60° (V) |
| Recommended Amplifier | ≤ 800 W @ 8Ω (no clip) in specified frequency response |
| Recommended Low Cut (Full Range) | 50 Hz, 18 dB/oct Butterworth |
| Recommended Low Cut (with sub) | 70 to 140 Hz, 24 dB/oct Linkwitz-Riley |
| Crossover | Passive @ 2.2 kHz |
| Low Frequency Driver | Fane transducer, 8Ω impedance, 10” (254 mm) diameter, 2.5” high temperature voice coil on glass fibre former |
| High Frequency Driver | 1” (25 mm) exit, 1.75” (44 mm) voice coil, polymer diaphragm |
| Nominal Size | 10 Inch |
| Type | Two-Way, Passive |
| Feature | Details |
|---|---|
| Pole Mount | 35 mm |
| Flying Hardware | 13x M8 Internal mounting points, 6x M10 Internal mounting points |
| Connectors | 2 Neutrik Speakon NL4 |
| Cabinet | CNC made with tongue and groove assembly, 15 mm void-free, exterior grade, birch plywood |
| Finish | Black water-based paint |
| Cabinet Size (H x W x D) | 523 x 300 x 346 mm |
| Shipping Carton Size (H x W x D) | 573 x 350 x 396 mm |
| Net Weight | 16 kg net |
| Gross Weight | 18 kg gross |
