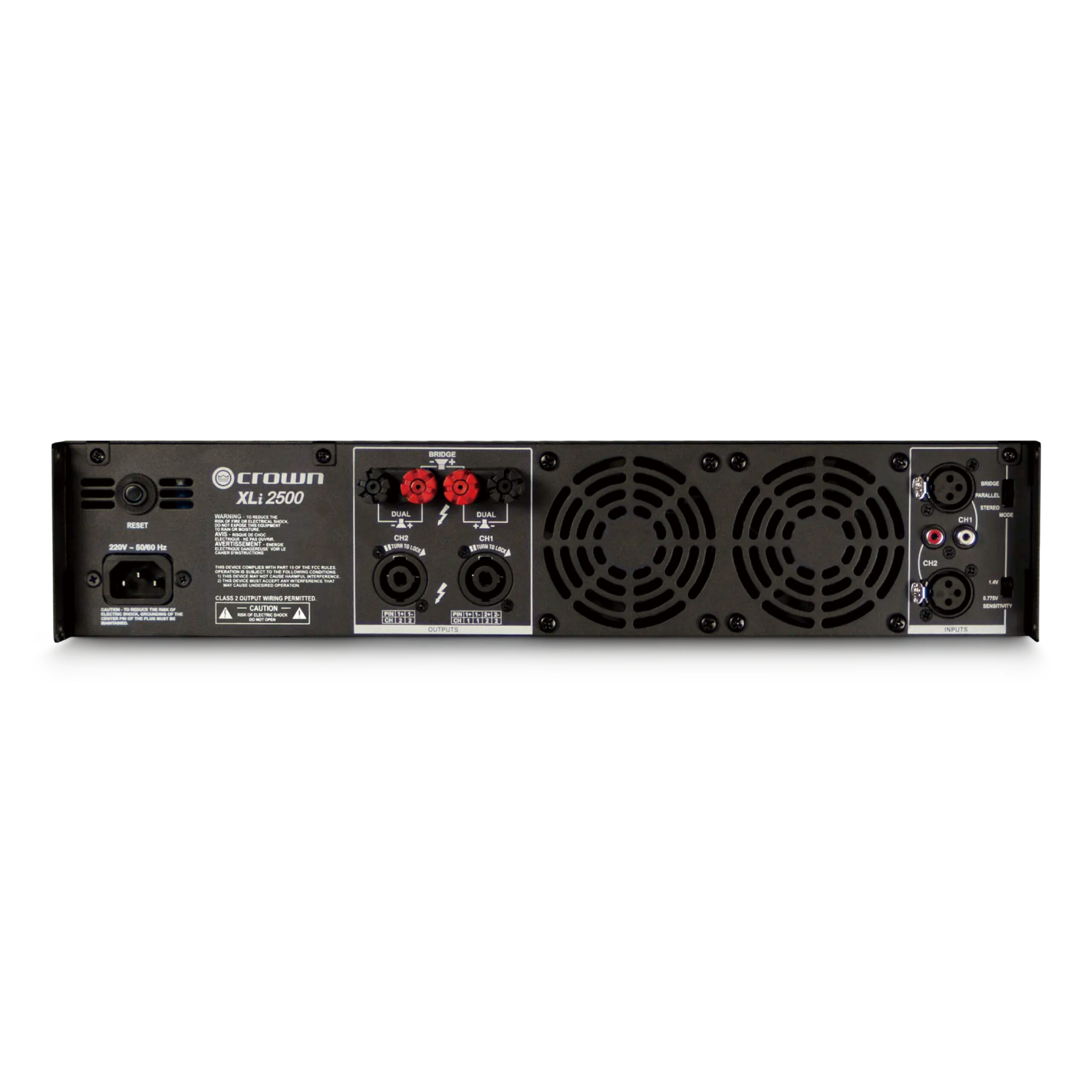

The Crown® XLI Series power amplifiers usher in a new era of affordable, high-quality professional amplification. All four models in the series are designed to deliver powerful performance, rugged durability, and dependable reliability, making them ideal for musicians, DJs, performers, churches, discos, bars, and other professional audio applications.
The series consists of four models: XLi800, XLi1500, XLi2500, and XLi3500. Aside from their different output power ratings, all models share the same core features and design architecture.
Key features include RCA and XLR inputs, user-selectable input sensitivity of 0.775V or 1.4V, Speakon® and binding post outputs, Stereo / Parallel / Bridge-Mono operating modes, Power / Fault / Signal / Clip indicators, forced-air cooling, and protection against short circuits, no-load operation, turn-on/off pops, and radio-frequency interference.
Backed by more than 60 years of proven expertise in amplifier engineering and manufacturing, Crown has become a benchmark in professional amplification technology. The Crown XLI Series stands as a true representation of value, performance, and reliability.
Recommended Application: Portable Sound Reinforcement
| Feature | Details |
|---|---|
| Frequency Response (@ 1 W) | 20 Hz – 20 kHz, +0 / -1 dB |
| Total Harmonic Distortion (THD) | < 0.5% (20 Hz – 20 kHz) |
| Intermodulation Distortion (IMD) |
≤ 0.35% (From Full Rated Output to -30 dB, 60 Hz and 7 kHz @ 4:1) |
| Slew Rate | > 10 V/μs |
| Voltage Gain | 33 dB |
| Damping Factor |
> 200 (8Ω, 10 Hz – 400 Hz) |
| Signal-to-Noise Ratio (A-Weighted) | > 100 dB |
| Crosstalk (Below Rated Power) |
-75 dB @ 1 kHz -59 dB @ 20 kHz |
| Input Sensitivity |
0.775 V or 1.4 V (Full Rated Power @ 8Ω) |
| Input Impedance |
20kΩ Balanced 10kΩ Unbalanced |
| Available AC Line Voltage & Frequency Configurations |
(+10%) 120V ~ 60 Hz 220V ~ 50/60 Hz 230-240V ~ 50/60 Hz |
| Dimensions |
19" × 3.5" × 12.4" (48.3 × 8.9 × 31.5 cm) |
| Weight | 29.7 lbs (13.5 kg) |
| IEC Power Connector | 15A |
