The Crown® XLI Series power amplifiers introduce a new generation of affordable yet high-quality professional amplification solutions. Designed for powerful performance, rugged durability, and dependable operation, the XLI Series is ideal for musicians, DJs, entertainers, churches, discos, bars, and a wide range of portable sound reinforcement applications.
The series includes four models: XLi800, XLi1500, XLi2500, and XLi3500. Apart from their different output power ratings, all models share the same professional features and platform design.

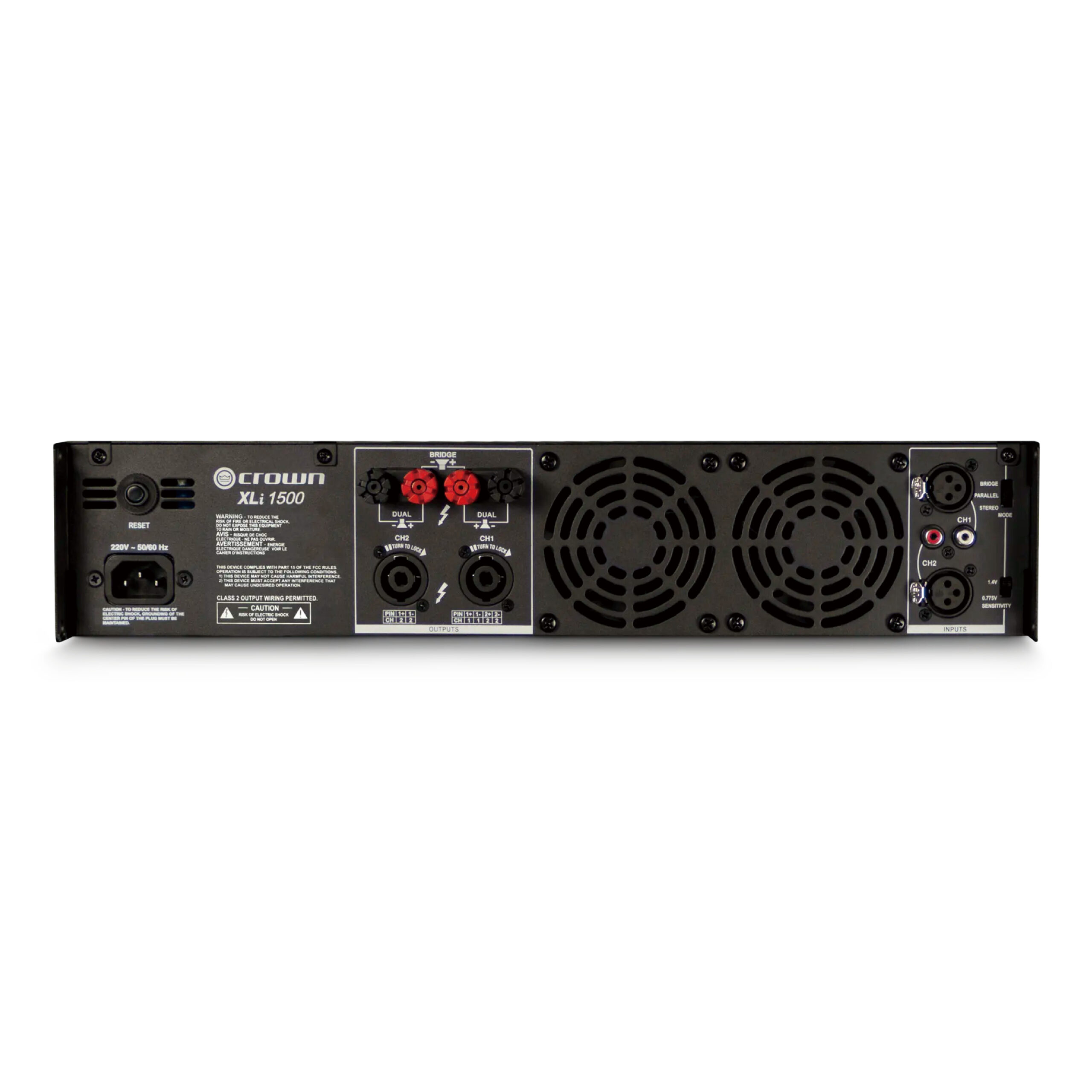

Key features include RCA and XLR inputs, user-selectable input sensitivity of 0.775V or 1.4V, Speakon® and binding post outputs, Stereo / Parallel / Bridge-Mono operating modes, Power / Fault / Signal / Clip indicators, forced-air cooling, and comprehensive protection against short circuits, no-load operation, turn-on/off pops, and radio-frequency interference.
Backed by more than 60 years of proven expertise in amplifier engineering and manufacturing, Crown has become a trusted benchmark in professional amplification technology. The Crown XLI Series represents the perfect balance of performance, reliability, and affordability.
Recommended Application: Portable Sound Reinforcement
| Feature | Details |
|---|---|
| Frequency Response (@ 1 W) | 20 Hz – 20 kHz, +0 / -1 dB |
| Total Harmonic Distortion (THD) | < 0.5% (20 Hz – 20 kHz) |
| Intermodulation Distortion (IMD) |
≤ 0.35% (From Full Rated Output to -30 dB, 60 Hz and 7 kHz @ 4:1) |
| Slew Rate | > 10 V/μs |
| Voltage Gain | 31 dB |
| Damping Factor |
> 200 (8Ω, 10 Hz – 400 Hz) |
| Signal-to-Noise Ratio (A-Weighted) | > 100 dB |
| Crosstalk (Below Rated Power) |
-75 dB @ 1 kHz -59 dB @ 20 kHz |
| Input Sensitivity |
0.775 V or 1.4 V (Full Rated Power @ 8Ω) |
| Input Impedance |
20kΩ Balanced 10kΩ Unbalanced |
| Available AC Line Voltage & Frequency Configurations |
(+10%) 120V ~ 60 Hz 220V ~ 50/60 Hz 230-240V ~ 50/60 Hz |
| Dimensions |
19" × 3.5" × 12.4" (48.3 × 8.9 × 31.5 cm) |
| Weight | 28 lbs (12.7 kg) |
| IEC Power Connector | 15A |
