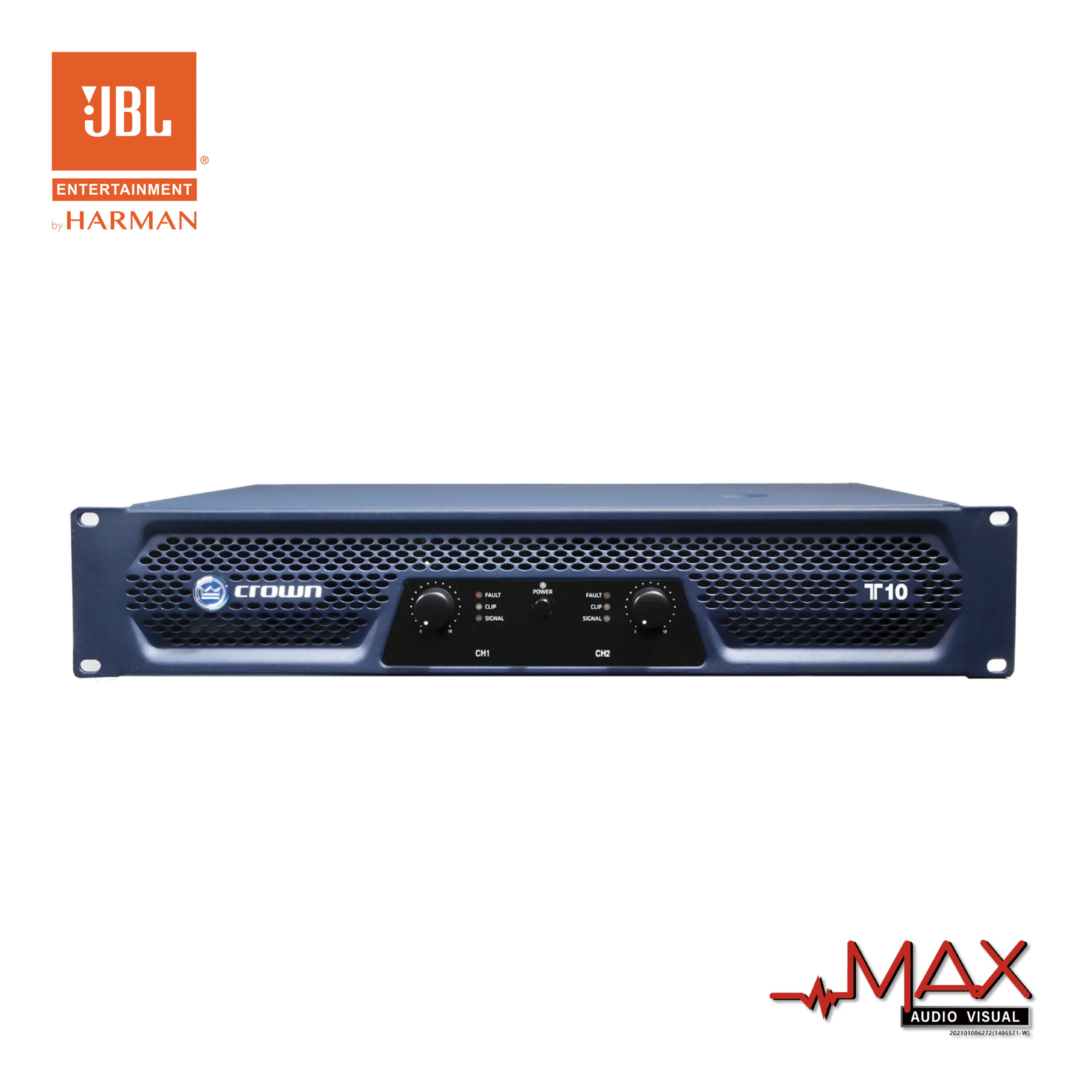

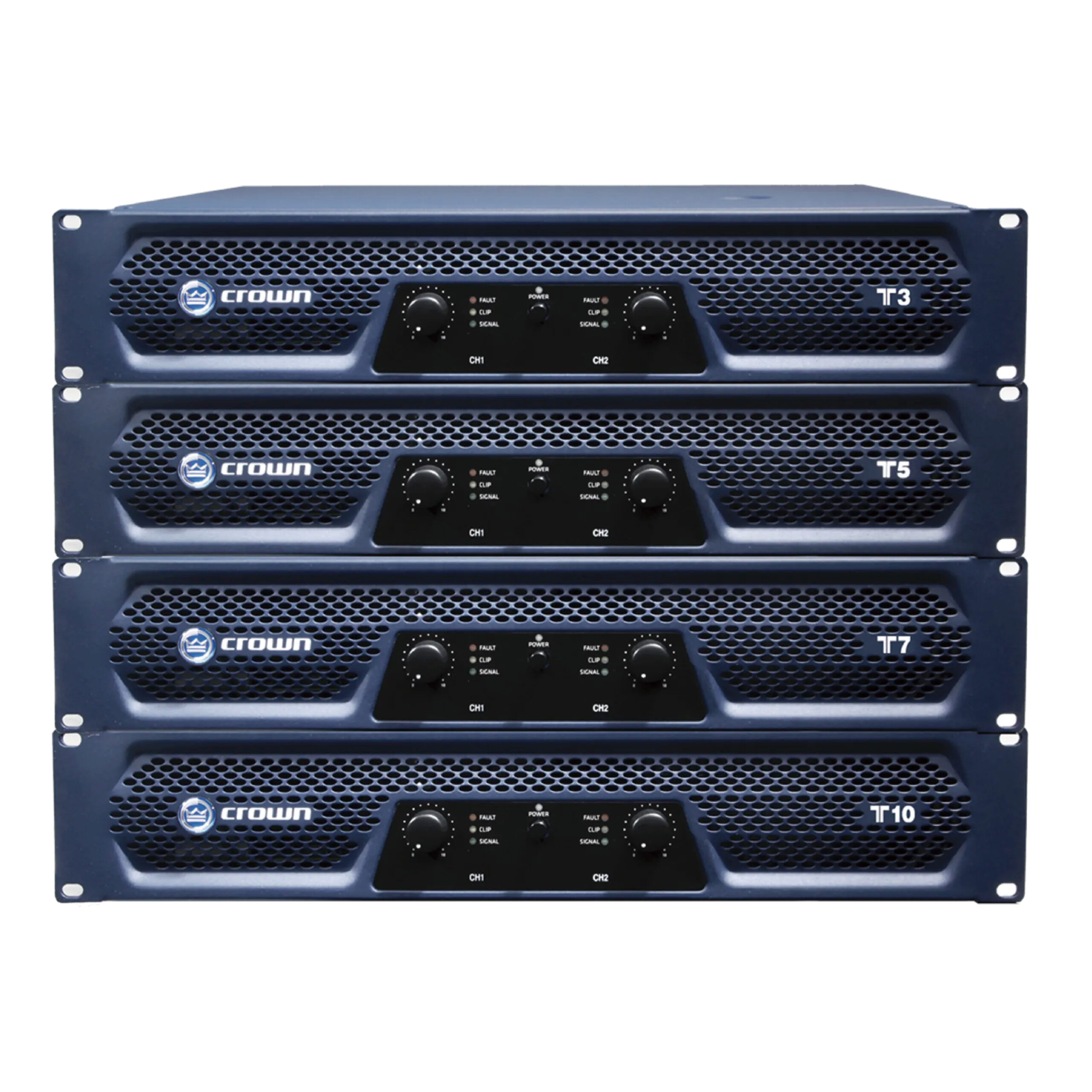

The Crown T Series is a range of professional-grade power amplifiers specially designed for entertainment venues, cinemas, mobile performances, conference rooms, and various commercial audio applications. The series includes four models: T3, T5, T7, and T10.
Considering the limited rack space in most entertainment venues and the need for portability in mobile applications, the T Series adopts a compact structural design. Built upon Crown’s professional amplifier platform technology, the series utilizes a simplified yet highly efficient amplification circuit together with an upgraded cooling system design to ensure stable and reliable performance.
For more than 60 years, Crown has remained dedicated to the research and innovation of professional power amplifier technology. The T Series professional amplifiers are engineered to deliver dependable performance and an outstanding user experience.
| Feature | Details |
|---|---|
| Frequency Response | 20 Hz – 20 kHz, +0 / -1 dB |
| Total Harmonic Distortion (THD) | < 0.5% (20 Hz – 20 kHz) |
| Intermodulation Distortion (IMD) | ≤ 0.35% |
| Conversion Rate | > 10 V/μs |
| Voltage Gain | 31 dB |
| Damping Factor |
> 200 (8Ω, 10 Hz – 400 Hz) |
| Signal-to-Noise Ratio |
> 100 dB (20 Hz – 20 kHz, A-weighted, below rated power) |
| Crosstalk |
-75 dB @ 1 kHz -59 dB @ 20 kHz Referenced to rated output power |
| Input Sensitivity |
0.775 V or 1.4 V (Rated Output Power @ 8Ω) |
| Input Impedance |
20kΩ Balanced 10kΩ Unbalanced |
| Input Connectors |
One Balanced XLR Connector or One Unbalanced RCA Connector per Channel |
| Output Connectors |
One 4-Pin Speakon® Connector and One Pair of Binding Posts per Channel |
| Front Panel Controls |
Power Switch and Channel Gain Control Knobs |

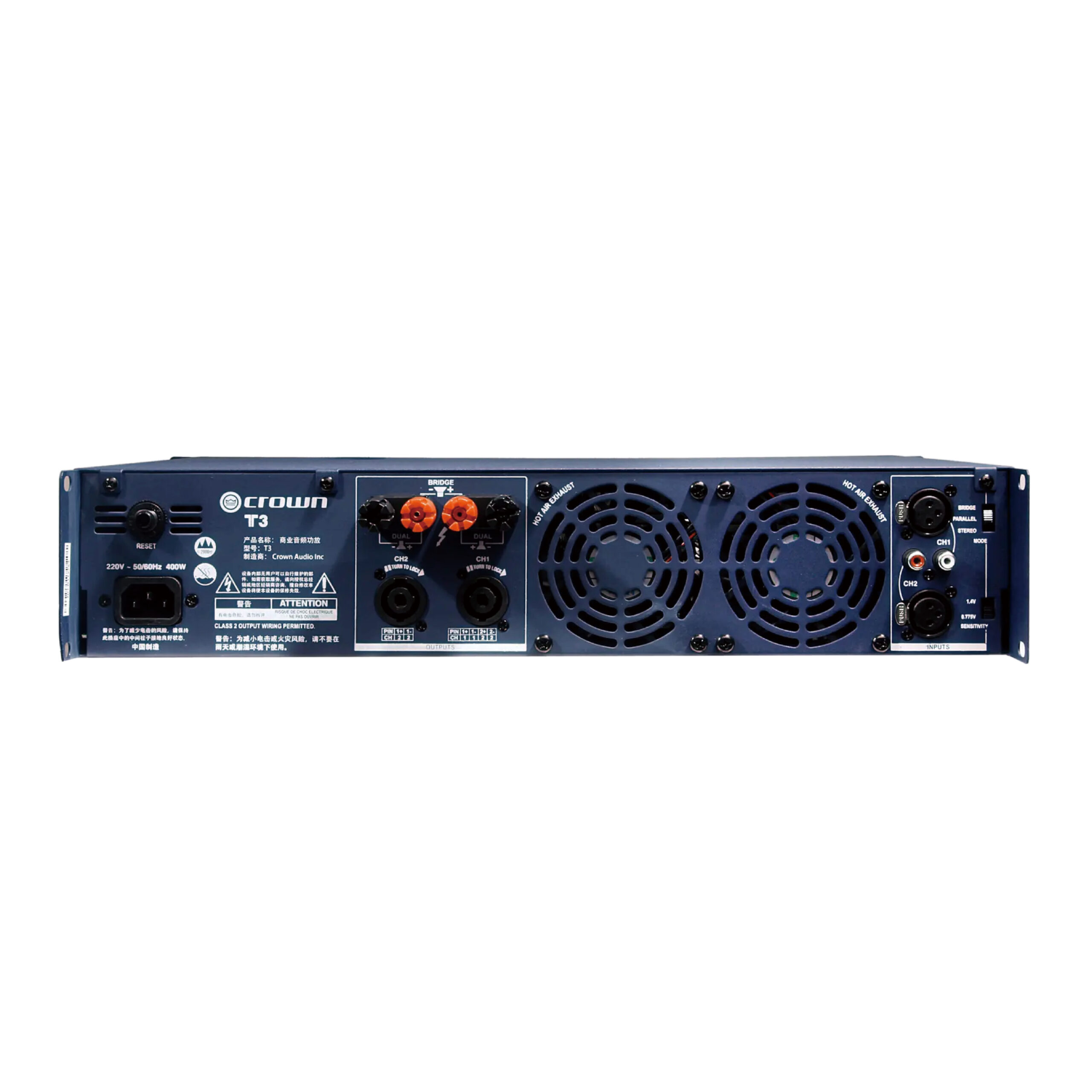

| Rear Panel Controls |
Output Mode Switch: Stereo / Parallel / Bridge-Mono Input Sensitivity Switch: 0.775V or 1.4V |
| Power Indicator | Blue LED |
| Signal Indicator | One Green LED per Channel |
| Clip Indicator | One Yellow LED per Channel |
| Fault Indicator |
One Red LED per Channel Indicates Channel Protection / Shutdown |
| Power Cable Specifications |
Power Plug: 10A, 250V Power Cable: CCC 3 × 1.5 mm² |
| Protection |
Short Circuit Protection, No-Load Protection, Power On/Off Noise Protection, Radio Frequency Interference Protection |
| Ventilation | Front-to-Back Air Convection Cooling |
| Cooling System |
Forced Internal Air Cooling, Fan Cooling with Fast Thermal Regulation, Temperature Protection |
| Dimensions (W × H × D) |
19" × 3.46" × 12.45" (482 × 88 × 316.4 mm) |
| Net Weight | 28.0 lb (12.7 kg) |
| Shipping Weight | 32.4 lb (14.7 kg) |
