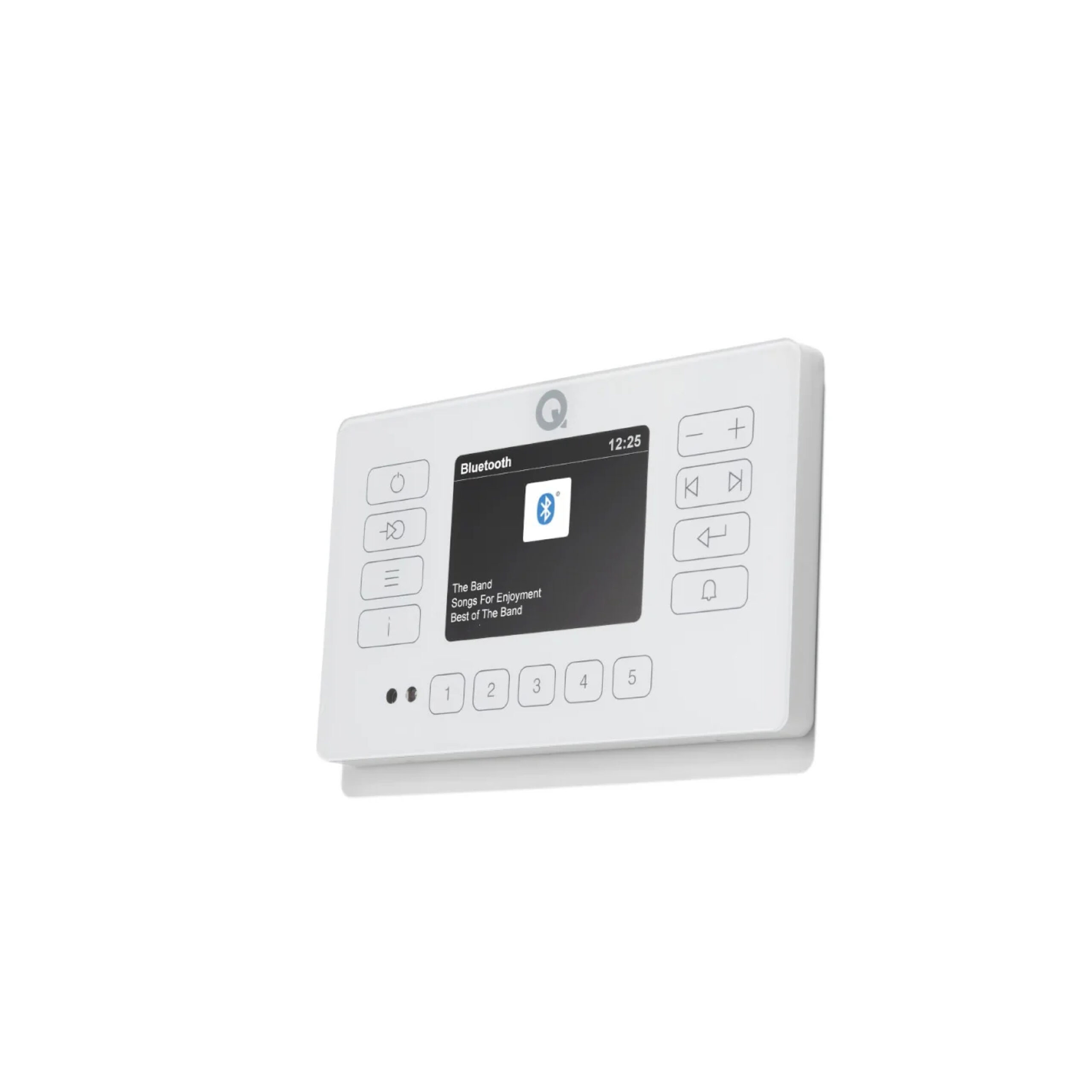

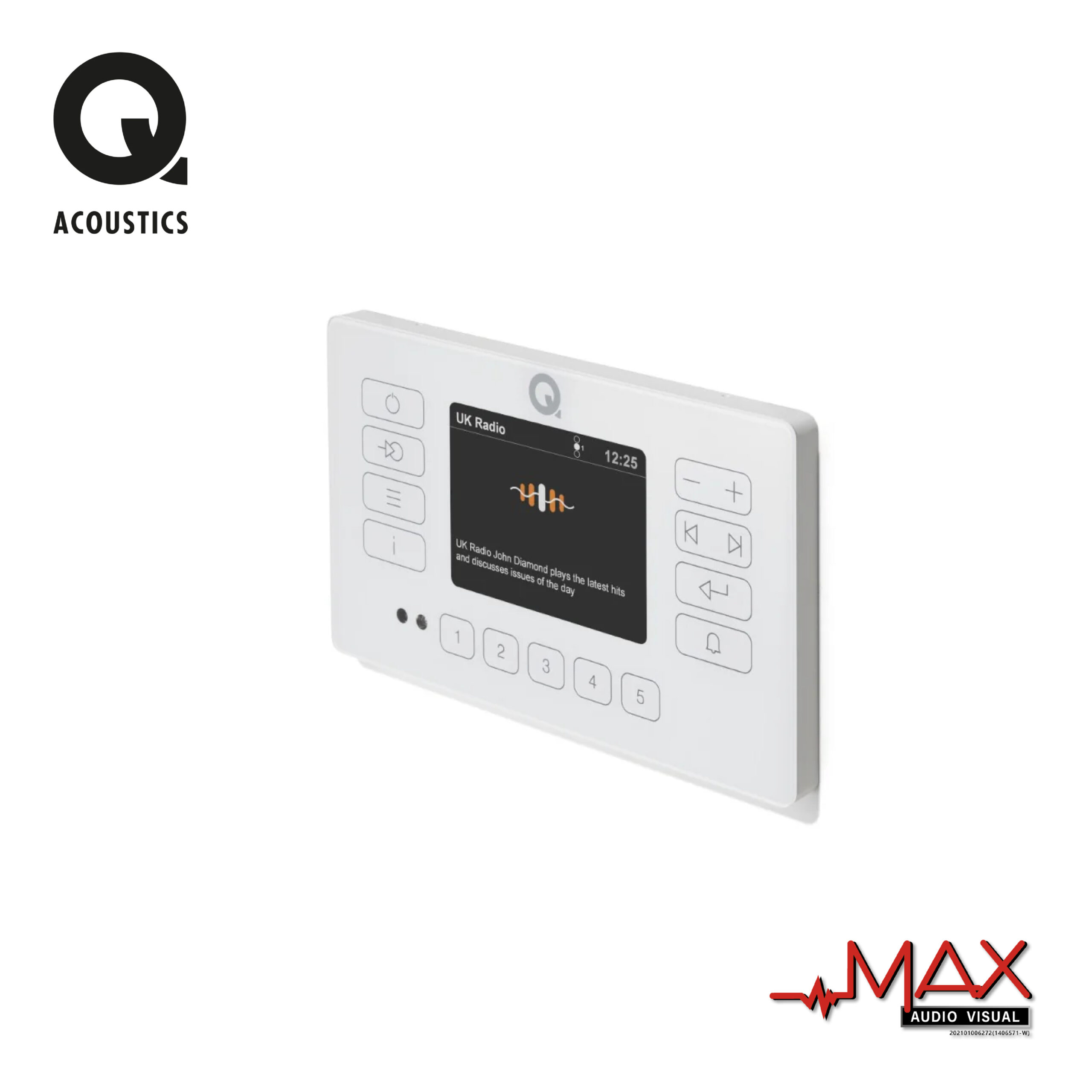

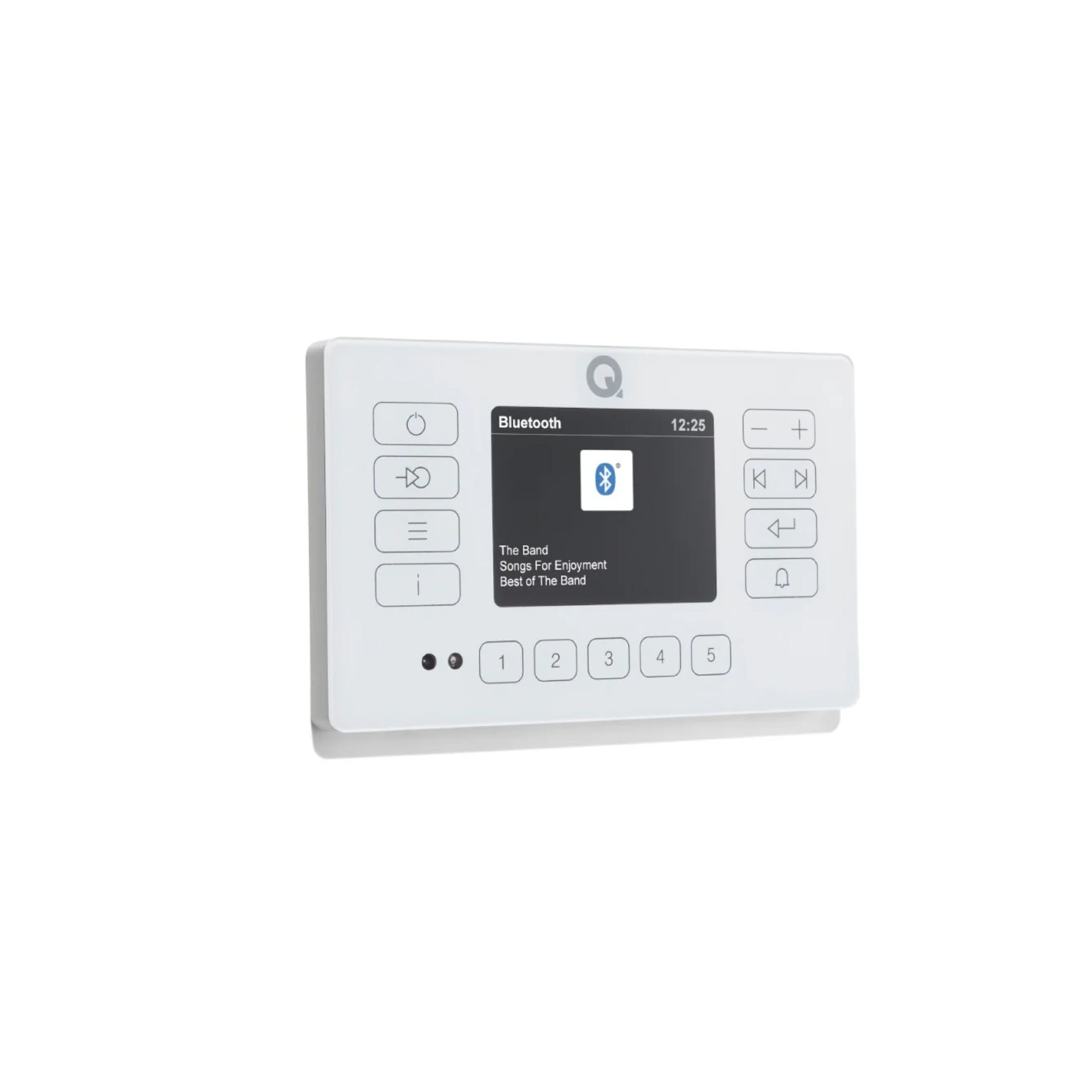

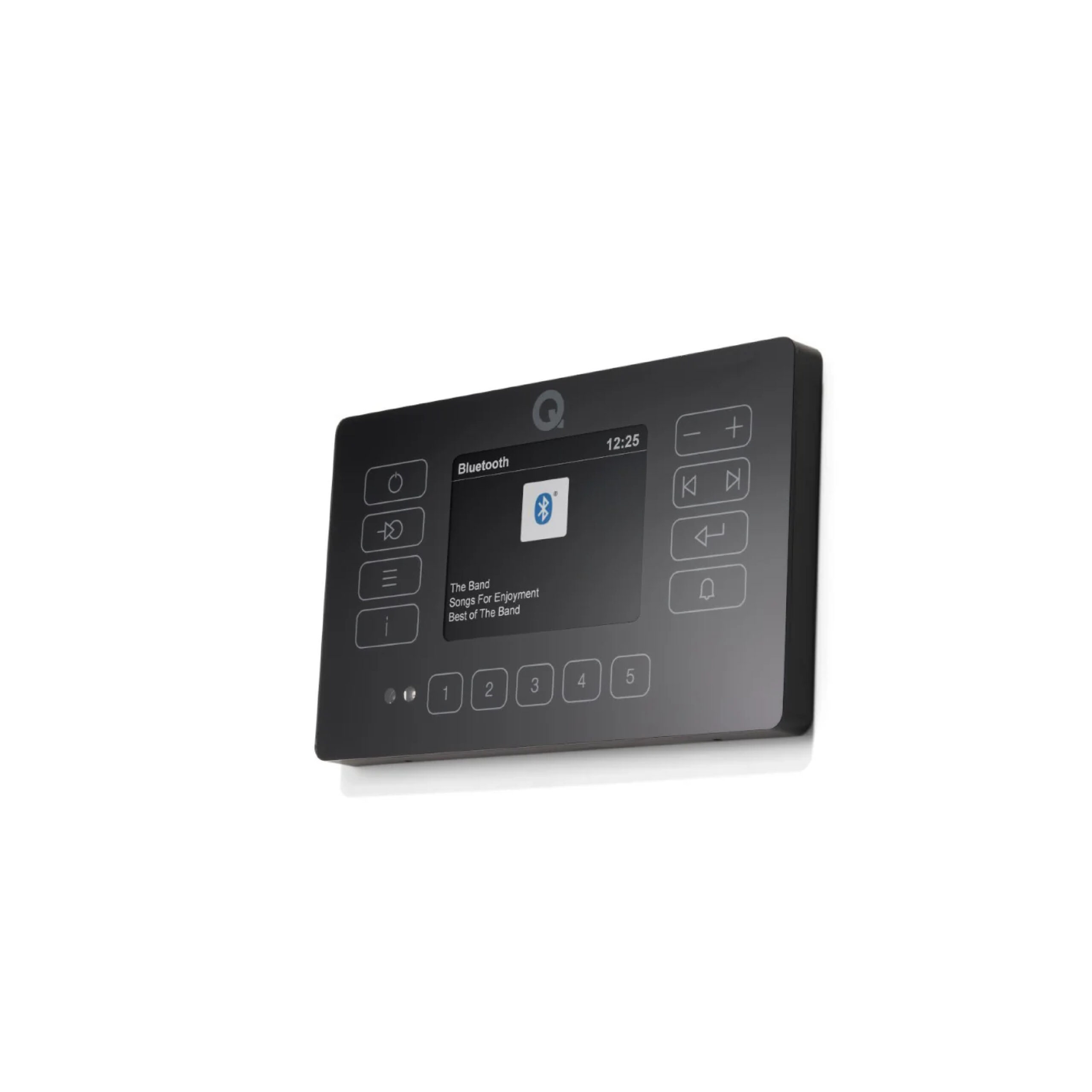

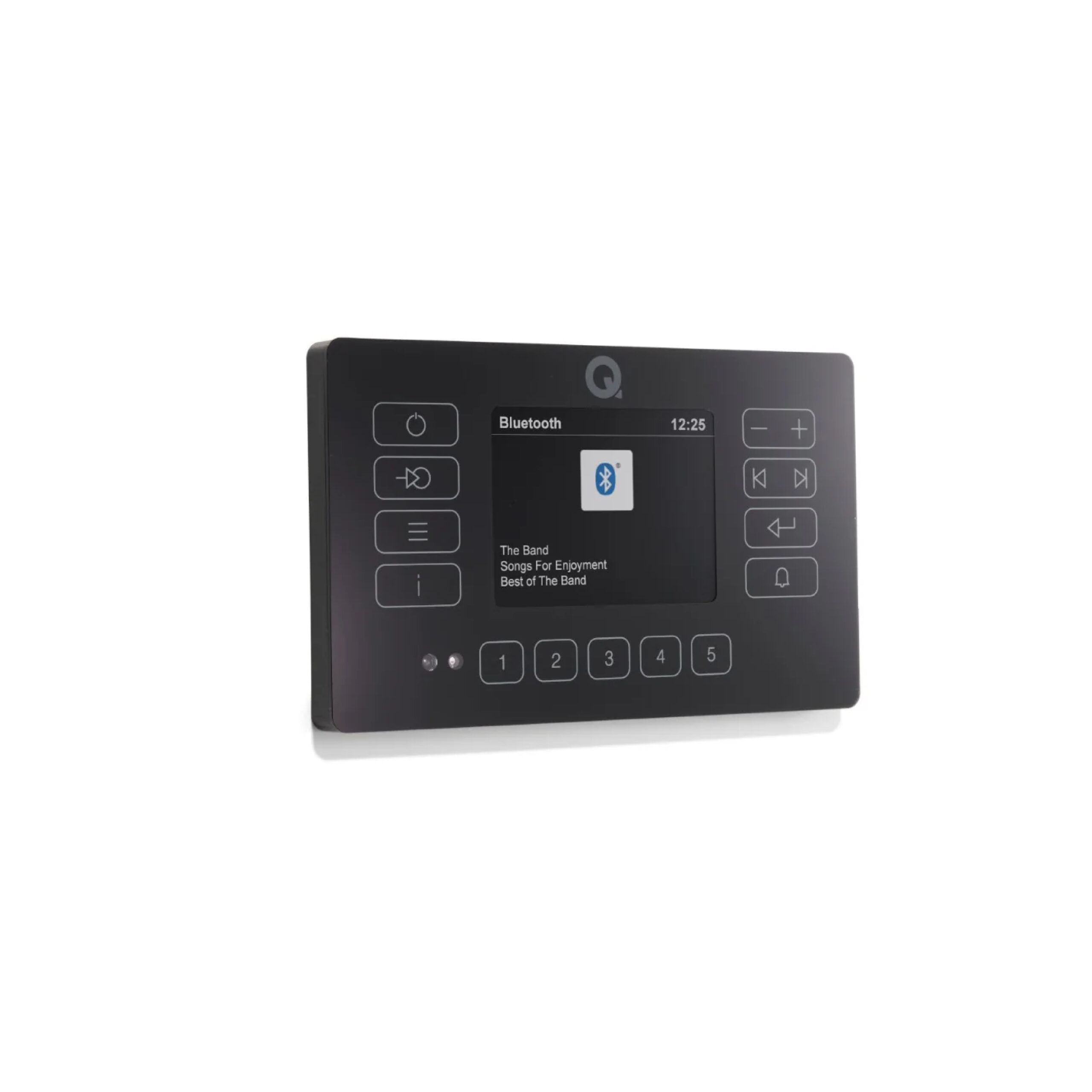

Q Acoustics E120 Wireless Stereo System

RM2,699.00

Q Acoustics E120 Wireless Stereo System

Categories:

With the E120, Q Acoustics is entering into the custom install market, and it aims to make the process easy peasy.

Q Acoustics has announced the E120, an installed wireless audio system suitable for any room or garden office. Intended for music or even watching movies on the TV, the E120 can, according to Q Acoustics, “fill any room with dynamic, immersive and superior stereo audio”.

Powered by a class D stereo amplifier, the E120 has 2 x 25W of power at 6ohms, and has been optimised for Q Acoustics’ in-ceiling and in-wall speakers.

But if you don’t have Q Acoustics speaker then fret not, any pair of passive speakers, “including cabinet designs between 6-8 ohms”. Speaker outputs can be configured as stereo or dual mono by using a small switch, while a pair of speakers “can be wired in series on each output to support even distribution of sound in larger rooms.”

The unit can stream audio from popular music streaming services via Bluetooth from mobile devices, laptops an digital audio players. Those who a listen to classic ‘wireless’ can enjoy DAB+ and FM broadcasts with up to five presets available to configure to your liking.

Its IP54 water resistance rating means it can be installed in bathrooms or kitchens, the bundled remote is splashproof at IP67 so you could even use it in the bath.

2x 3.5mm analogue inputs along with a mini-TOSLINK are included to facilitate use with a TV, while its rear analogue audio output could be used to plug into a subwoofer, external power amplifier or another E120 system.

The 3.2-inch colour touch screen can be used to control playback and shows details such as track, artist and album name. The E120’s internal light sensor capable of automatically setting the brightness levels of the screen, or dimming settings can be manually altered.

E120 Specifications:

Audio Sources & Connectivity:

Feature Details
Audio Sources DAB / DAB+ / FM with RDS
Bluetooth Version 5.0, A2DP
Analogue Input 3.5 mm Stereo
Analogue Input Sensitivity 350 mV
Analogue Input Max Level 1.5 V
Analogue Input Impedance 10k Ω
Optical Input Mini TOSLINK
Optical Resolution 16-bit / 48 kHz
Speaker Outputs Left & Right, Stereo or Dual Mono
Analogue Output 3.5 mm Stereo
Output Modes Fixed or Variable
Maximum Output Level 670 mV

Amplifier:

Feature Details
Amplifier Type Class D
Continuous Power 2 × 25 W @ 6 Ω
THD 0.07% @ 1W / 0.2% @ Rated Power
Signal-to-Noise Ratio >75 dB @ Rated Power
Frequency Response 20 Hz – 20 kHz ±1 dB

IP Ratings:

Feature Details
E120 Wall Panel IP54
Splash Proof Remote IP67

Control & Features:

Feature Details
Control Method Touch Sensitive Buttons
Remote Control Infra-red Remote Control
Bluetooth AVRCP v1.6 Play, Pause, Skip, Track, Artist, Album Name
Menu Languages English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish
Alarms 2 × Once / Daily / Weekdays / Weekends

Power Supply & Consumption:

Feature Details
Power Supply Input 100 – 240V AC 50/60 Hz
Power Supply Output 22V DC 1.5A
Typical Power Consumption 10 W
Standby Power Consumption <1 W
Deep Standby Consumption <0.5 W

Dimensions & Weight:

Feature Details
Main Unit Dimensions (H × W × D) 30 × 50 × 115 mm
Wall Panel Dimensions (H × W × D) 91 × 151 × 33 mm
Wall Panel Net Weight 0.251 kg

Cables Supplied:

Cable Details
Speaker Cable 19 AWG, 2 × 7 m
Power Cable 16 AWG, 5 m
5.5 mm × 2.5 mm DC Male / Female Connectors

In The Box:

  • 1 × E120 Control Panel and System
  • 2 × 7 m Speaker Cables
  • 1 × 5 m Power Cable
  • 1 × Remote Control
  • 1 × Waterproof Remote Control
  • 1 × Power Supply (EU & UK Mains Leads)
  • 1 × Indoor DAB/FM Antenna
  • 1 × 3 m Antenna Extension Cable
  • 1 × Backbox
  • 1 × Quick Start & Installation Manuals
