Kystar KLS6c two-in-one controller supports 3 -way digital signal input, has 6networkport outputs, and can load up to 3.9 million pixels. It adopts pure hardwareFPGAarchitecture and can run continuously for 365 × 24 hours, meeting the configurationrequirements of large-screen control systems for small-pitch applications.

Features
 The single machine has 6 network ports, each port can load 650,000 pixels, andthemaximum load of the whole machine is 3.9 million pixels. The width canreach8180points and the height can reach 4090 points.

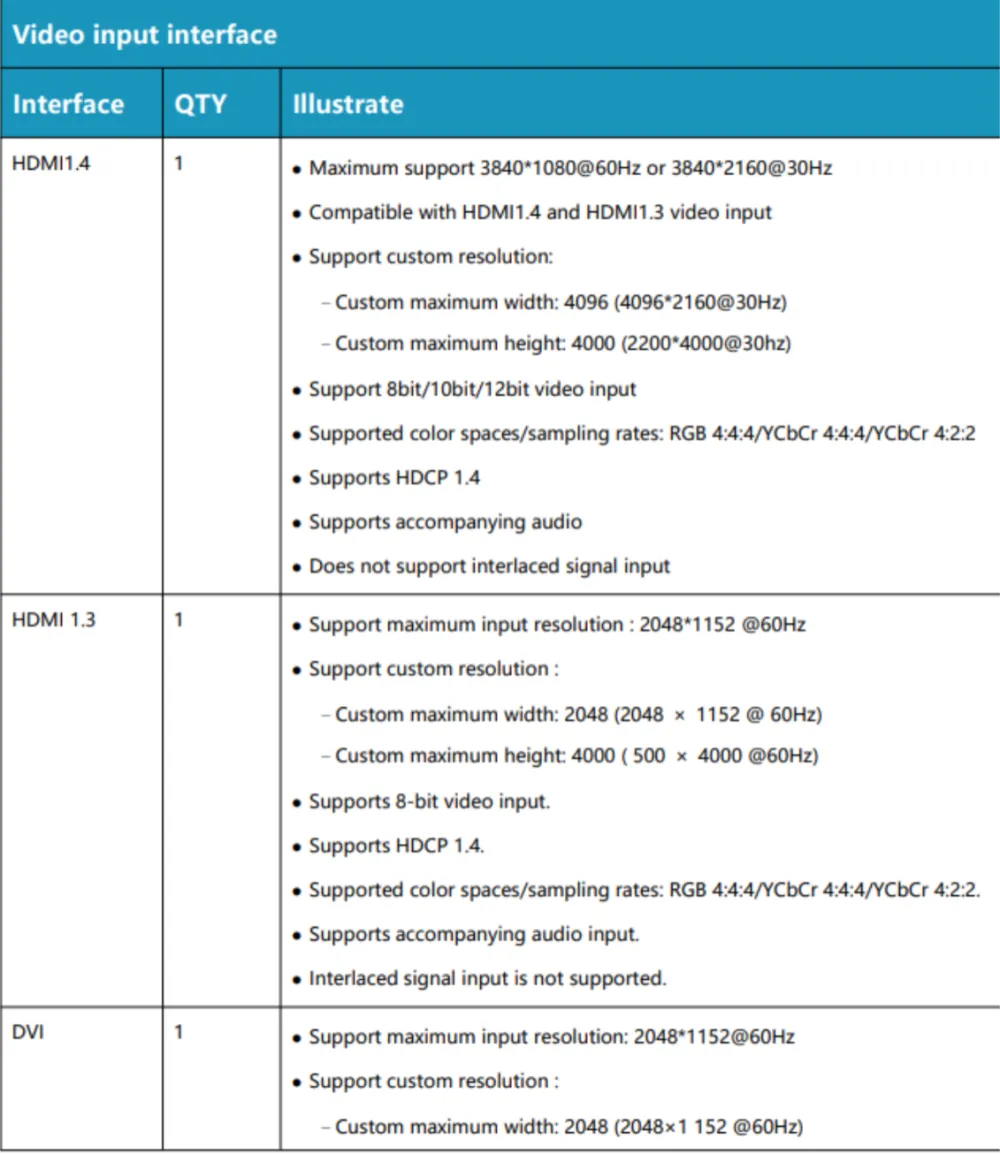

 Supports multiple digital signal interfaces, including 1*HDMI1.3 , 1*DVI-Dand1*HDMI-1.4 input sources.
 Supports 3-screen display with arbitrary screen positions.
 Supports arbitrary stringing, the network port load is not restricted by rectangle, andtheutilization rate of the network port is improved.
 It supports self-output of test images such as pure color, gradient, scan line, etc., whichis convenient for on-site debugging and testing.
 EDID configuration management: supports reading, modifying and customizingEDID(Extended Display Identification Data).
 Supports one-click black screen/still function.
 Black edge removal/cropping function: solve the black edge problemgeneratedbythefront-end signal, and perform arbitrary cropping for any signal source (still keepthefull screen state)
 Support key lock to prevent accidental operation.
 The brightness and contrast of the overall output image can be adjusted inreal timeandquickly.
