FEATURES
APPLICATIONS
Characterized by exceptional sound quality and robust engineering, the ST-118S subwoofer stands as a prime choice for bass reinforcement within main PA systems. It proves itself apt for various applications, including touring, as well as permanent installations in medium-sized venues. Designed to harmonize seamlessly with the ST series full-range loudspeakers, this enclosure is furnished with an optimized, high-excursion Fane 18” driver, boasting a 4” voice coil and a cast frame. Notably, the driver’s advanced motor system design is engineered to minimize power compression, a feature that significantly contributes to maintaining pristine audio quality during operation.
The cabinet design incorporates noise-reducing optimized bass-reflex ports and internal bracing, both of which enhance the acoustic characteristics of the enclosure. As a result, the ST-118S is adept at delivering dynamic and high-output bass response, extending down to an impressive 28 Hz.

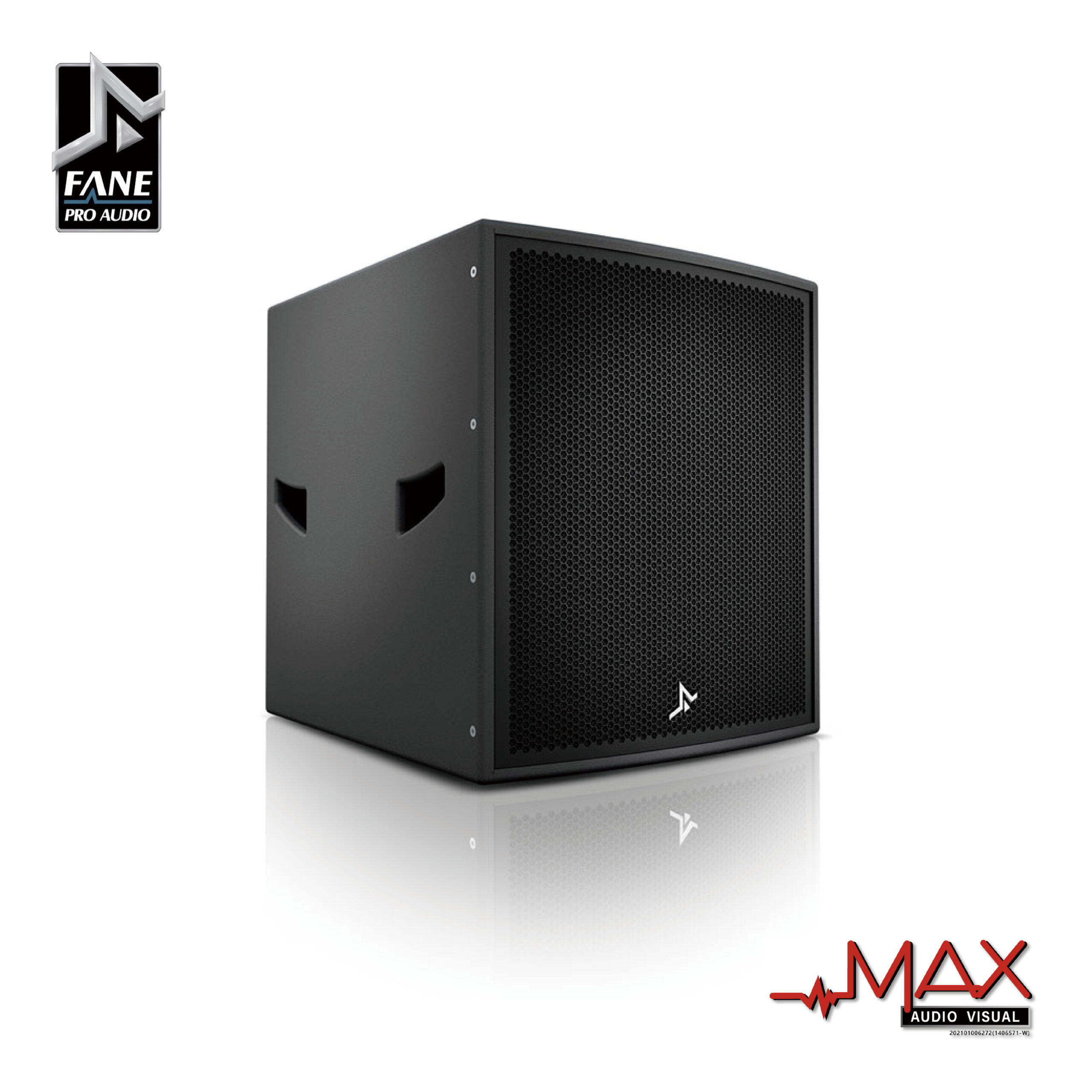

Durability is a hallmark of the ST-118S, as evidenced by its construction using 18mm and 24mm exterior-grade, void-free birch plywood. The matt black, sand-based paint finish further fortifies the enclosure against the rigours of the road. Protecting the front of the cabinet is a robust black powder-coated steel grille with a hexagon pattern, bolstered by an acoustic mesh backing.

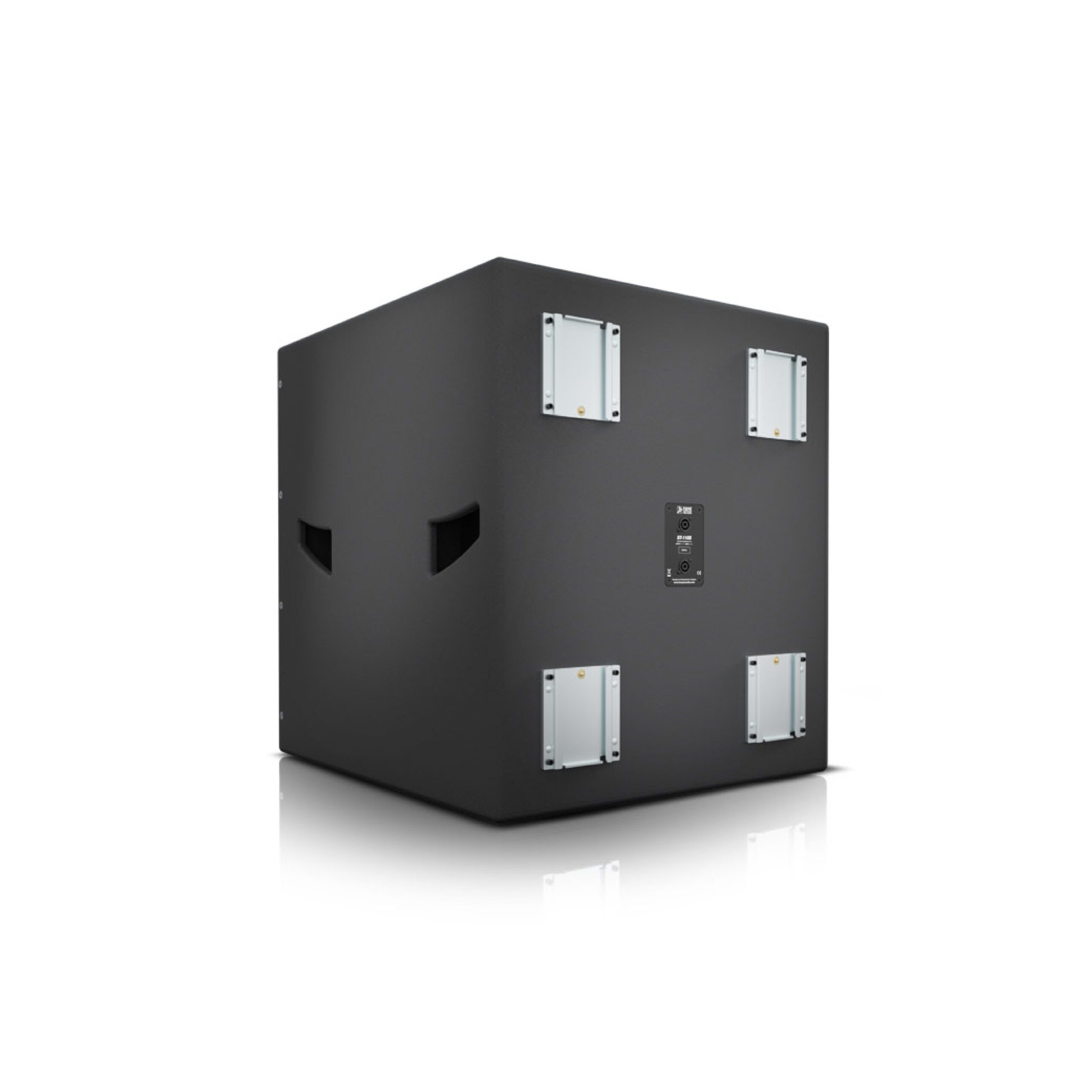

Designed with practicality in mind, the cabinet features a 35 mm pole mount adapter with an M20 screw fitting, catering to versatile mounting preferences. four flush side handles are provided. The rear of the cabinet is equipped with four quick-release castor plates, facilitating effortless attachment of widely available castors (not supplied). This blend of meticulous design, exceptional components, and user-oriented features solidifies the ST-118S as a reliable and performance-driven subwoofer option.
| Feature | Details |
|---|---|
| System Type | Subwoofer |
| Nominal Size | 18 Inch |
| Program Power Handling | 2400 W |
| Peak Power Handling | 4800 W |
| AES Power Handling | 1200 W |
| Nominal Impedance | 8 Ω |
| Average Sensitivity | 98 dB @ 1W / 1m |
| Calculated Max SPL (Continuous) | 128 dB |
| Max SPL (Program) | 131 dB |
| Max SPL (Peak) | 134 dB |
| Frequency Response (-6 dB) | 34 Hz – 1.2 kHz |
| Manufacturing Consistency | 30 Hz – 300 Hz (±3 dB) |
| Nominal Directivity (-6 dB) | Omnidirectional |
| Recommended Amplifier Power | ≤ 1600 W @ 8 Ω |
| Recommended Low Cut (Full Range) | N/A |
| Recommended Low Cut (with Subwoofer) | N/A |
| Recommended Crossover |
LPF 70 – 125 Hz 24 dB/Oct Butterworth or Linkwitz-Riley |
| Crossover Requirement |
Active Operation Only External Electronic Crossover Required Fane Recommended DSP Settings |
| Low Frequency Driver |
Fane Transducer 18" (460 mm) Driver 8 Ω Impedance 60 mm Peak-to-Peak Excursion 4" High-Temperature Voice Coil Glass Fibre Former |
| High Frequency Driver | N/A |
| Flying Hardware | 8 × M8 Flying Points with Internal Metal Brackets |
| Pole Mount |
35 mm Pole Mount M20 Threaded Fitting |
| Connectors | 2 × Neutrik Speakon NL4 |
| Cabinet Construction |
CNC Manufactured Tongue & Groove Assembly 18 mm & 24 mm Exterior Grade Void-Free Birch Plywood |
| Finish | Matt Black, Sand-Based Paint |
| Cabinet Dimensions (H × W × D) | 671 × 590 × 689 mm |
| Shipping Carton Dimensions (H × W × D) | 721 × 640 × 739 mm |
| Net Weight | 60 kg |
| Gross Weight | 65 kg |
| Optional Accessories | 4 × Quick-Release Castor Plates |
