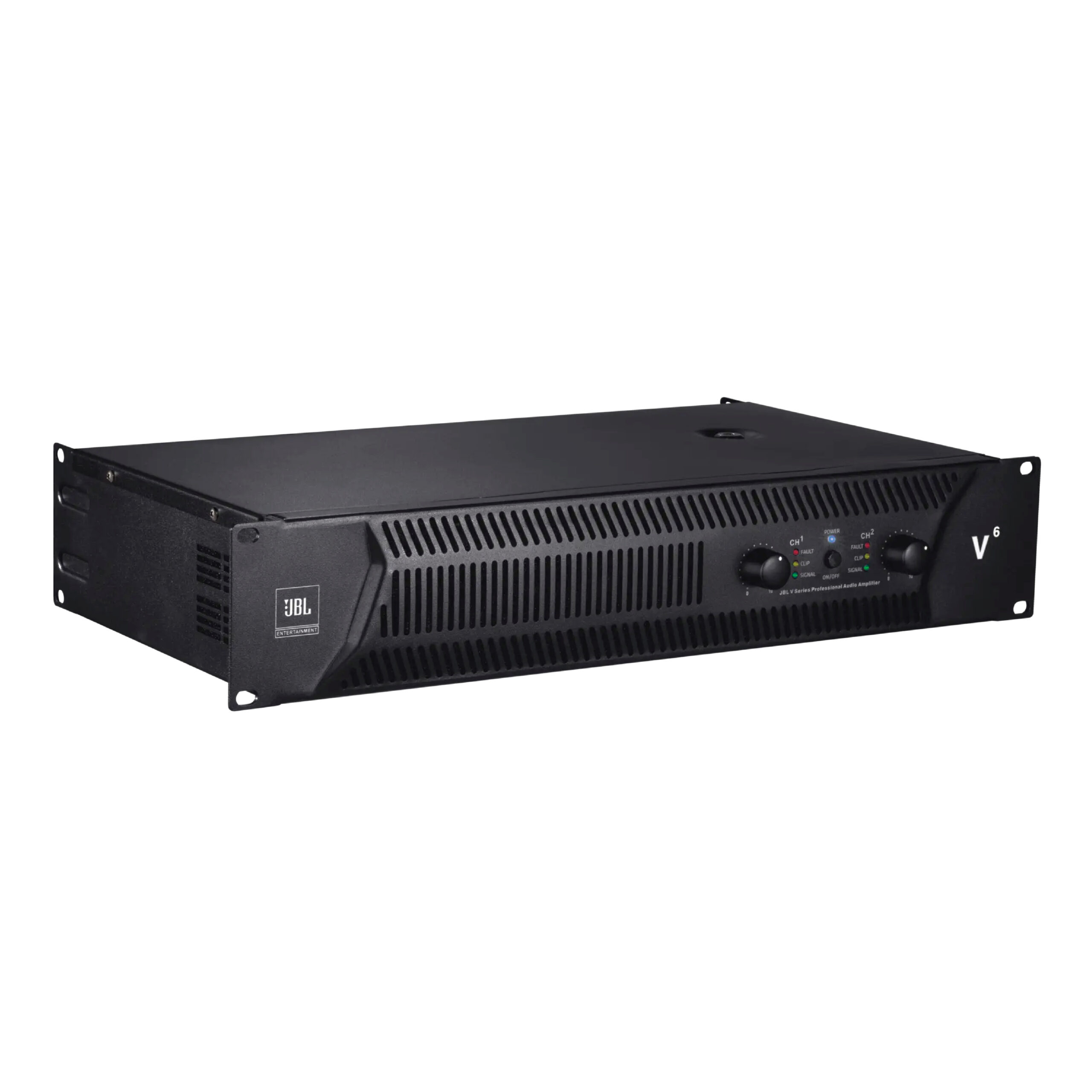

The JBL V6 is a cost-effective dual-channel professional audio amplifier specially designed to meet low- to medium-power output demands while delivering optimized performance matching for JBL entertainment loudspeakers.
The JBL V6 features dual-channel audio amplification housed in a 2U rack-mount chassis. Equipped with Harman custom-designed amplifier transistors, it incorporates innovative circuit design tailored to JBL’s acoustic requirements, delivering high-fidelity sound performance for JBL entertainment speaker systems. Balanced XLR inputs and loop-through outputs are provided, allowing signals to be routed to additional devices through balanced connections. Speakon® audio connectors and binding post outputs enable fast and convenient installation for KTV applications.
Currently available only in China.
| Feature | Details |
|---|---|
| Minimum Guaranteed Power @ 4Ω Stereo (Per Channel) | 640 W |
| Minimum Guaranteed Power @ 8Ω Stereo (Per Channel) | 500 W |
| Minimum Guaranteed Power @ 8Ω Bridge Mono | 1280 W |
| Frequency Response (1W) | 20 Hz – 20 kHz, +0 / -1 dB |
| Frequency Response Notes | Measured in a full space (4π) condition |
| Total Harmonic Distortion (THD) | < 0.5% (20 Hz – 20 kHz) |
| Transient Intermodulation Distortion (IMD) |
< 0.6% (60 Hz and 7 kHz at 4:1, from full rated output to -30 dB) |
| Conversion Rate | > 10 V/μs |
| Voltage Gain | 36 dB |
| Damping Factor |
> 200 (8Ω, 10 Hz – 400 Hz) |
| Signal-to-Noise Ratio | > 100 dB |
| Signal-to-Noise Ratio Notes |
Referenced to rated output power, 20 Hz – 20 kHz, A-weighted |
| Crosstalk | -75 dB @ 1 kHz, -59 dB @ 20 kHz |
| Crosstalk Notes | Referenced to rated output power |
| Input Sensitivity (Rated Power @ 8Ω) | 0.775 V |
| Input Sensitivity Notes |
According to IEC standard, tested for 2 hours under pink noise with a crest factor of 6 dB |
| Input Impedance |
20kΩ (Balanced Inputs) 10kΩ (Unbalanced Inputs) |
| Signal Input / Output Connectors |
One balanced XLR input and one XLR LINK output per channel |

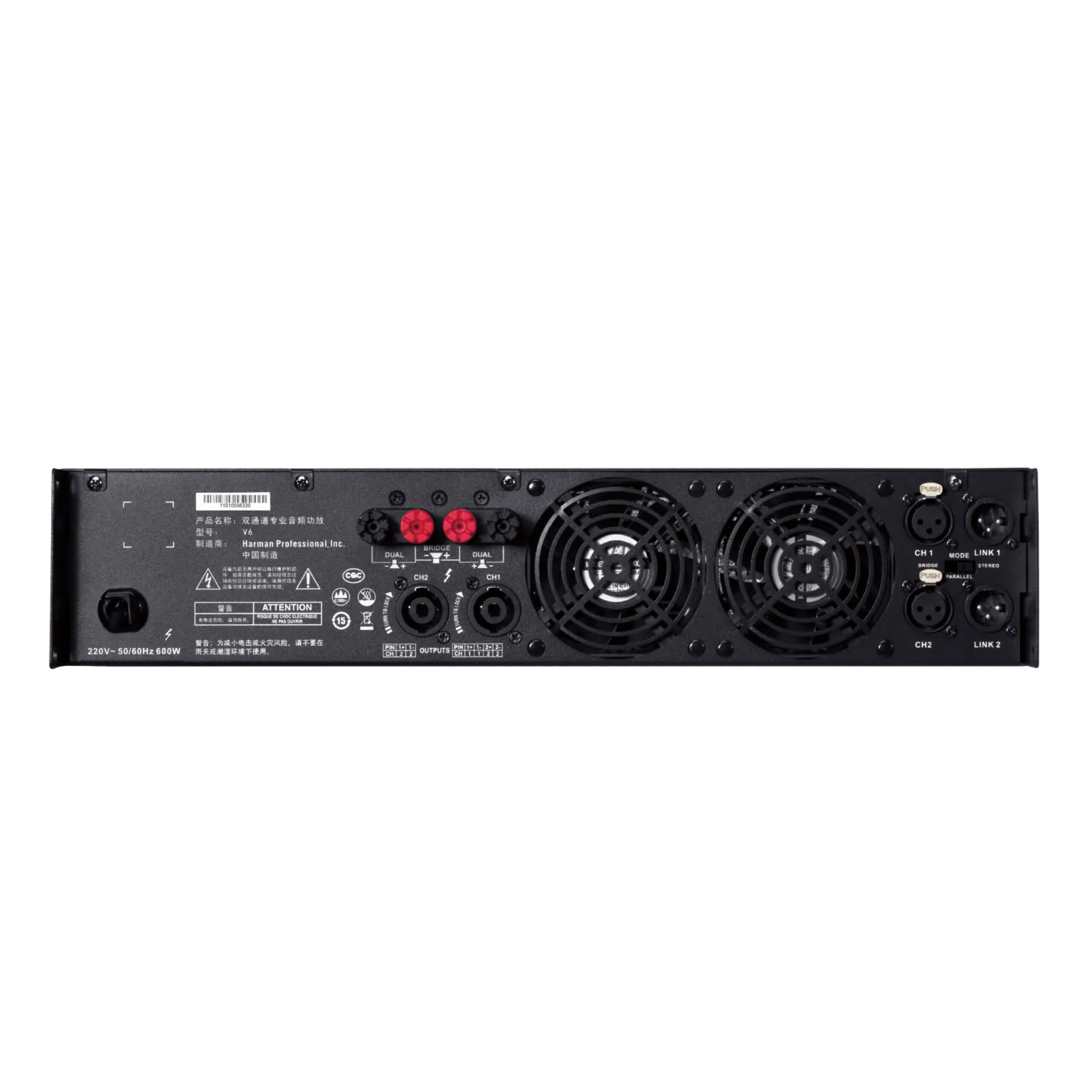

| Amplifier Output Connectors |
One Speakon output interface and one terminal output interface per channel |

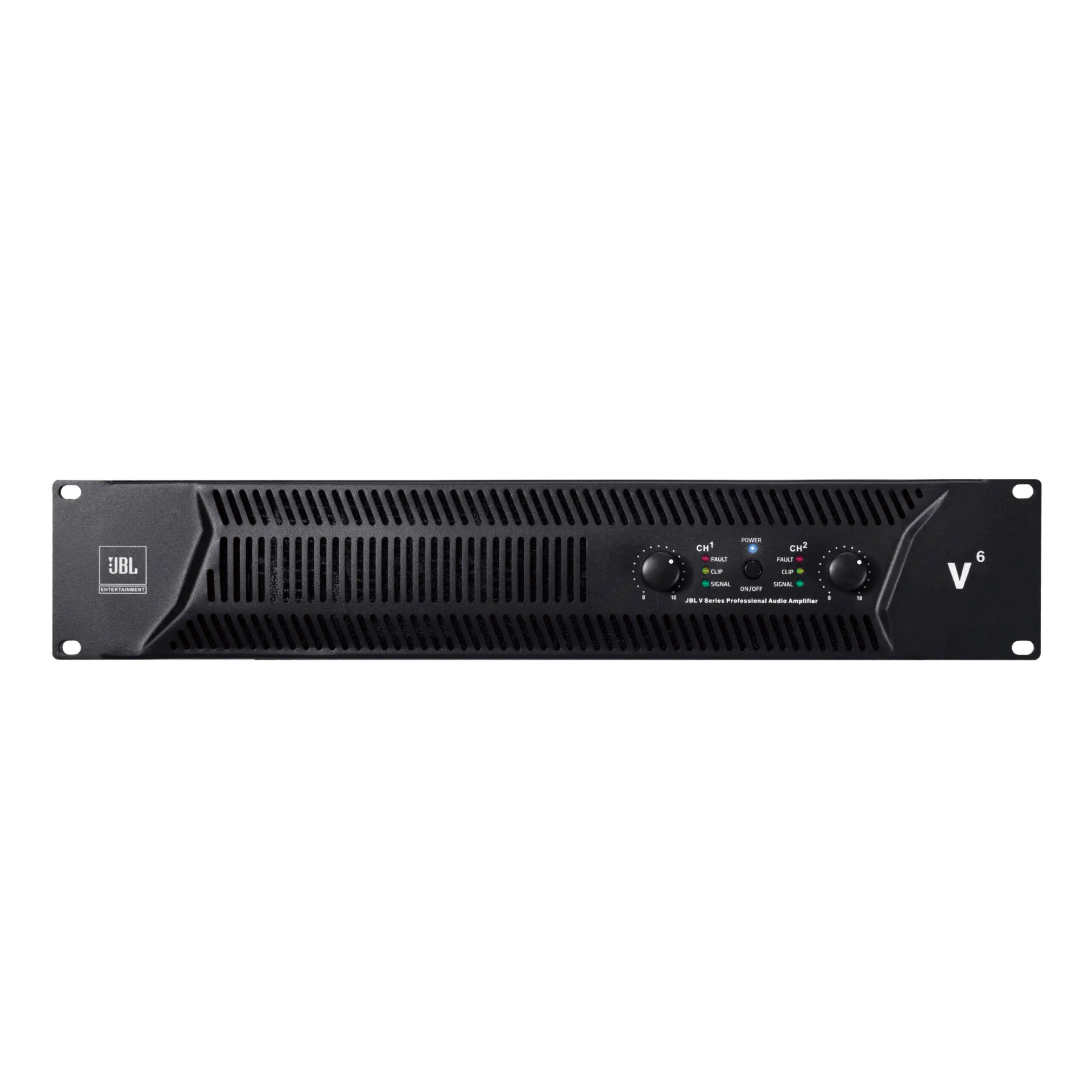

| Front Panel Controls | Power Switch and Channel Gain Knobs |
| Rear Panel Controls | Stereo / Parallel / Bridge-Mono Mode Switch |
| Power Indicator | Blue |
| Signal Indicator | Green |
| Clipping Indicator | Yellow |
| Fault Indicator | Red |
| Power Cord Specifications |
Plug: 10A, 250V Cable: CCC 3 × 1.0 mm² × 1.5m |
| Amplifier Housing | Built-in 2U Standard Rack |
| Protection |
Protection Against Short Circuit, No-Load Protection, Power On/Off Noise Protection, Radio Interference Protection, Abnormal Temperature Protection |
| Ventilation | Front-to-Back Air Convection Cooling |
| Cooling System | DC Motor Fan Cooling |
| Dimensions (W × H × D) | 482 × 88 × 238.5 mm |
| Net Weight | 11 kg |
