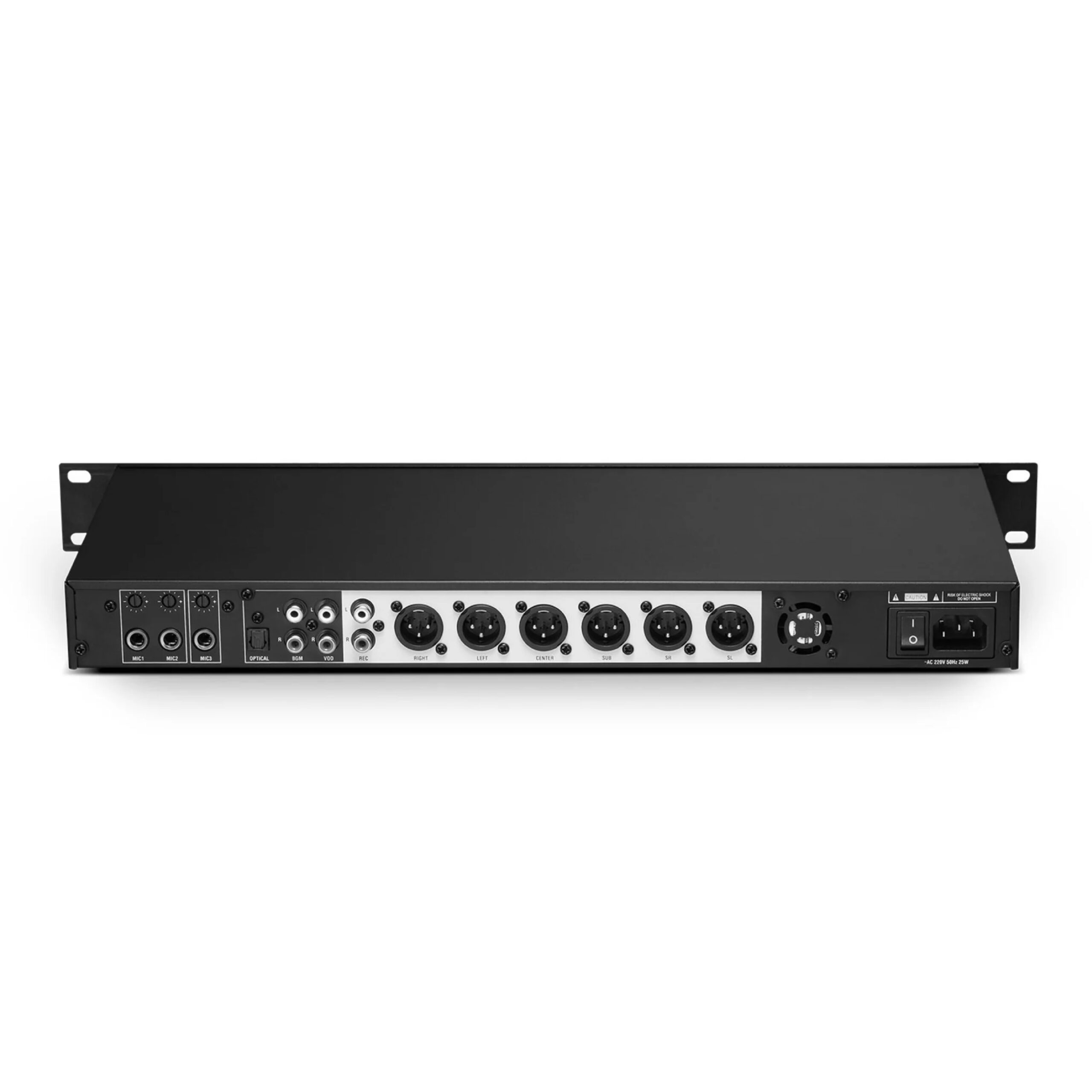

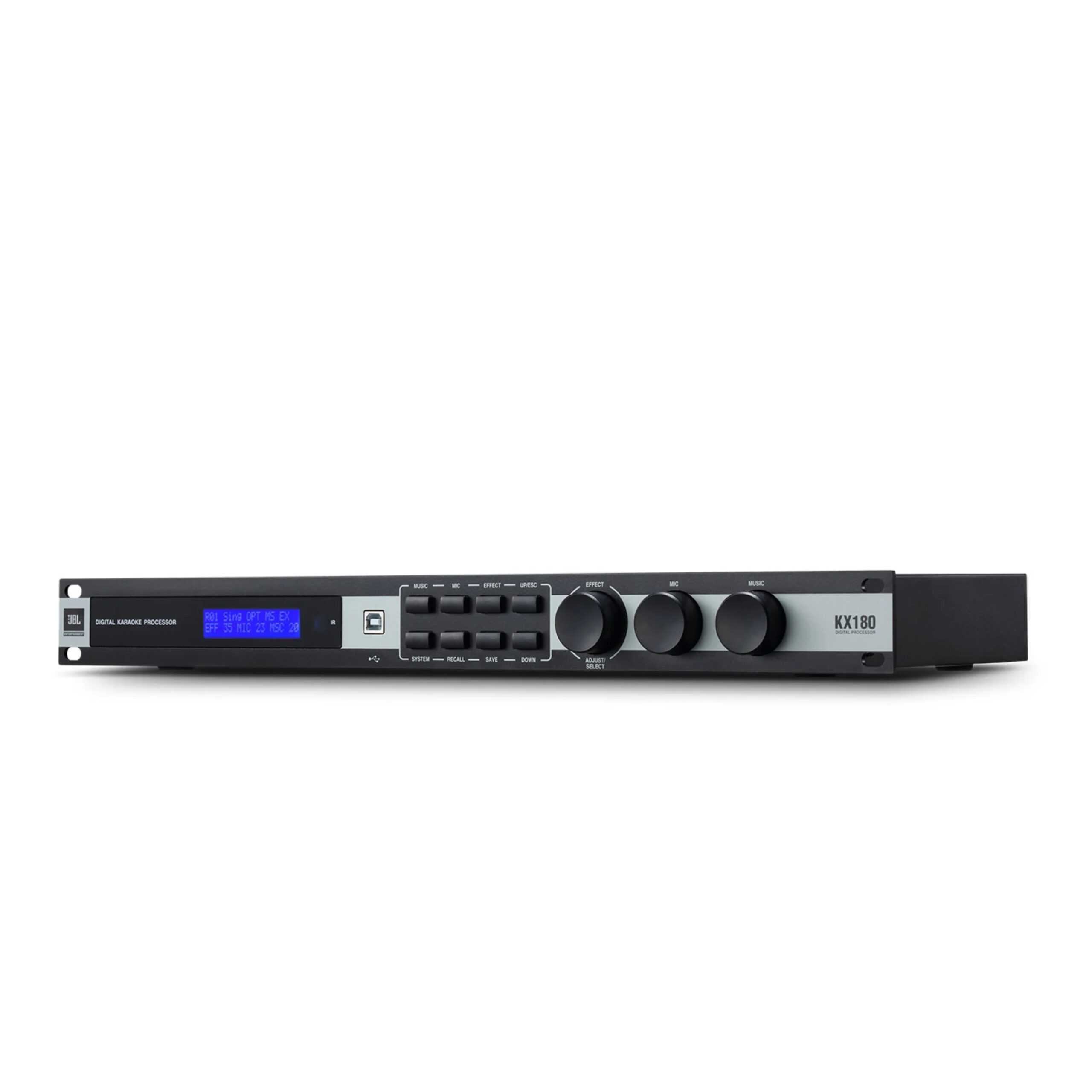

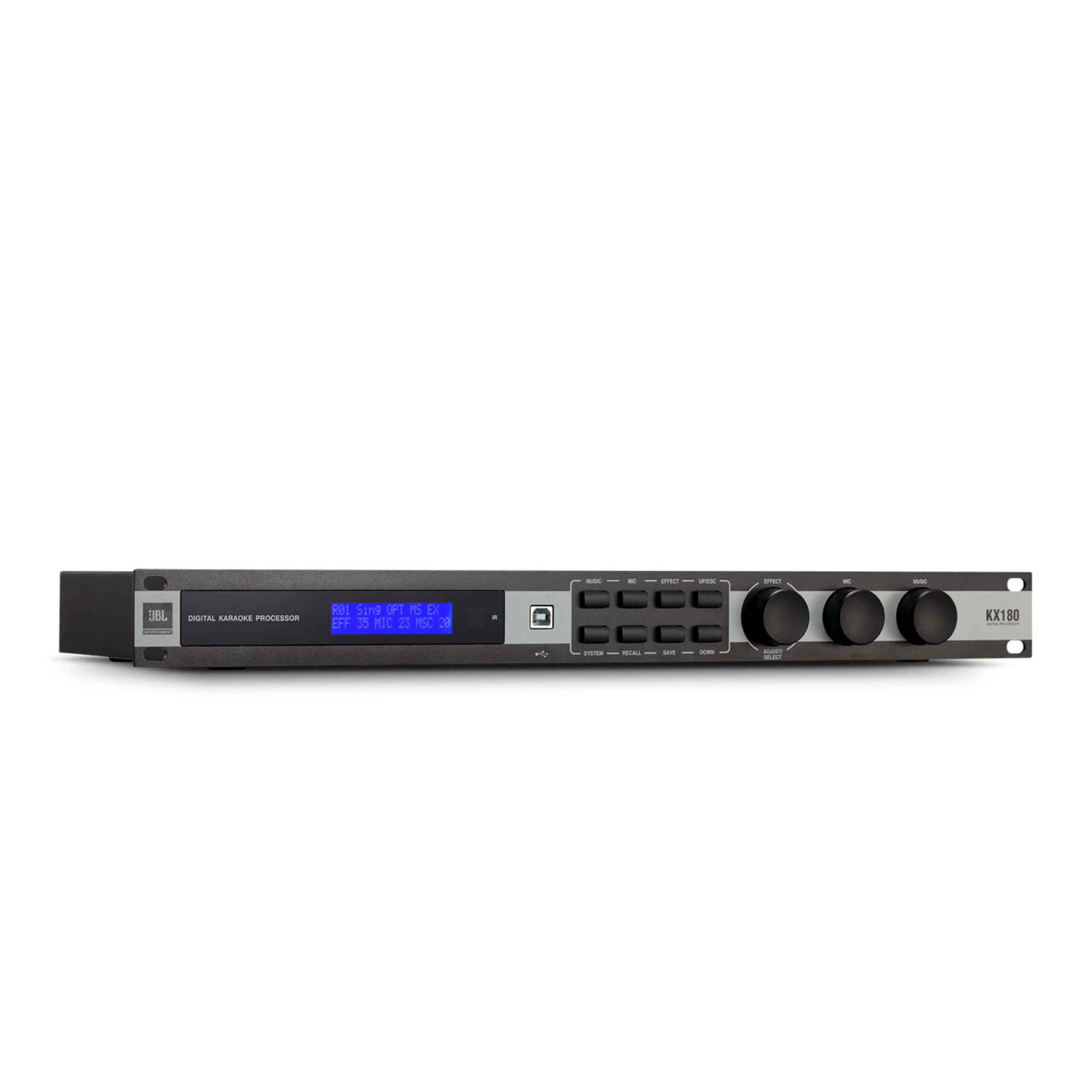

The KX180 is a professional-grade digital processor specially designed for karaoke applications, providing comprehensive audio processing functions to enhance and fine-tune both music and vocals. The KX180 is equipped with three 6.5mm microphone input connectors, two RCA input pairs, and one optical input for music sources, along with one pair of RCA connectors for recording output. It supports storing and recalling up to 10 presets, and allows manual or automatic switching between dance mode and singing mode.
| Feature | Details |
|---|---|
| Mic Input Type | 3 × 1/4" Unbalanced |
| Mic Input Impedance | 7.5K Ohms |
| Level Control | –∞ to +0.8 dBu |
| Line Input Type | RCA Unbalanced, Left & Right |
| XLR Output Type | Unbalanced |
| Output Level | 0 dBu Nominal, +14.2 dBu Maximum |
| RCA Output Type | Unbalanced, Left & Right |
| Frequency Response | 20Hz – 20kHz ≤ ±1.0 dB |
| THD + N | < 0.06% (20Hz – 20kHz) |
| Dynamic Range | > 100 dB |
| A/D Conversion | 24-bit / 48kHz |
| DSP Processor | High Performance 32-bit / 40-bit Floating-Point Processor |
| Carrier Frequency | 38kHz |
| Format | NEC |
| Control Distance | Device Dependent |
| Control Angle | Device Dependent |
| Computer Connection | USB 2.0 |
| AC Power Supply | AC 220V / 50Hz |
| Dimensions (W × D × H) | 485 × 205 × 47 mm |
| Net Weight | 2.8 kg |
| Gross Weight | 3.47 kg |
