The KPS5 is a 15″ two-way full-range loudspeaker system specially designed for sound reinforcement in karaoke bars and nightclubs.
This two-way system features a 15″ (381 mm) low-frequency woofer equipped with an optimized demodulation and cooling ring, along with a 1″ (25.4 mm) JBL 2414H NdFeB magnet high-frequency compression driver. Together, they deliver powerful music playback and crystal-clear vocals with high fidelity and high output capability. The advanced passive crossover network eliminates frequency overlap, allowing subtle vocal details to be reproduced with exceptional clarity. Whether the speaker is installed horizontally or vertically, the 100° × 70° (H × V) horn ensures smooth and even coverage throughout the venue.

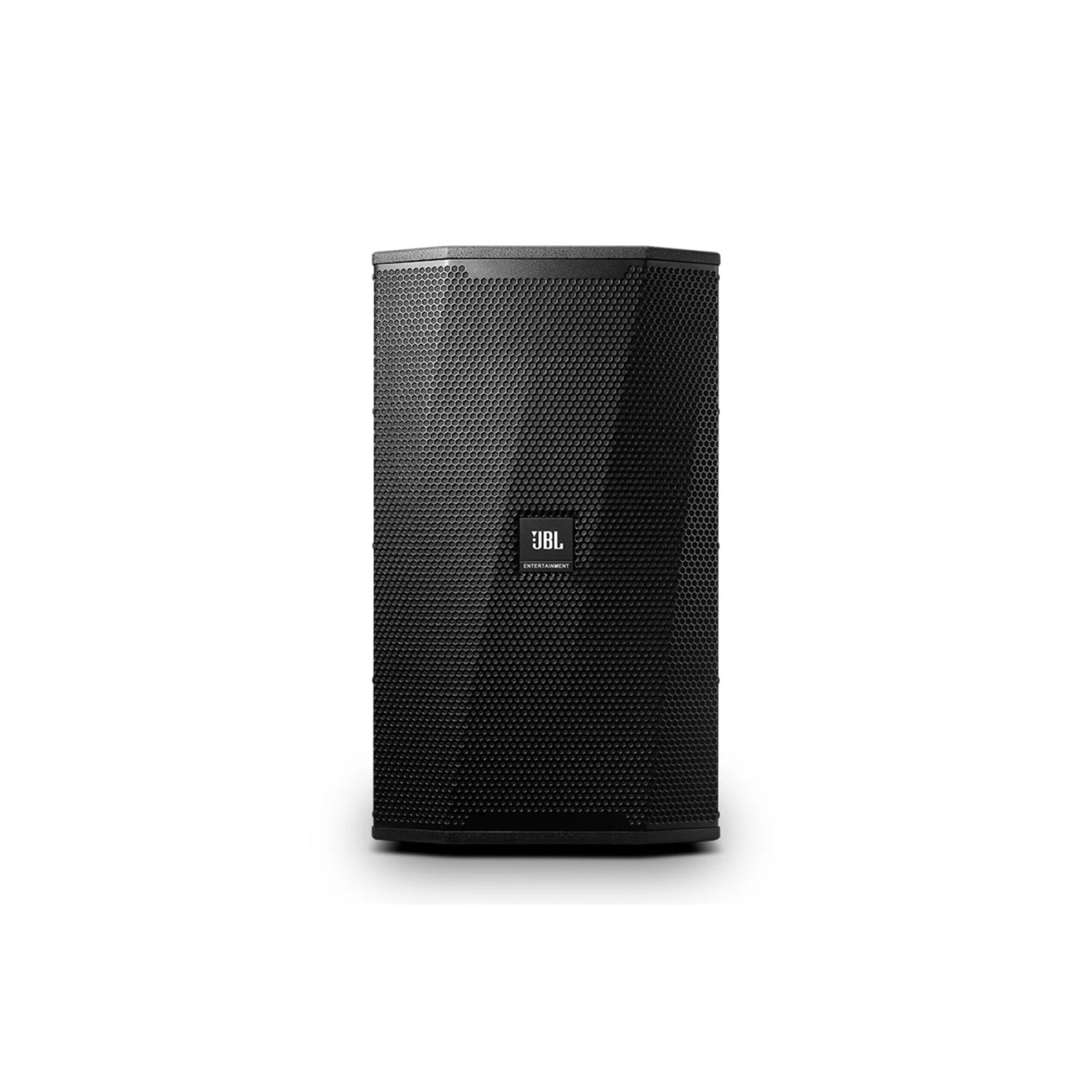

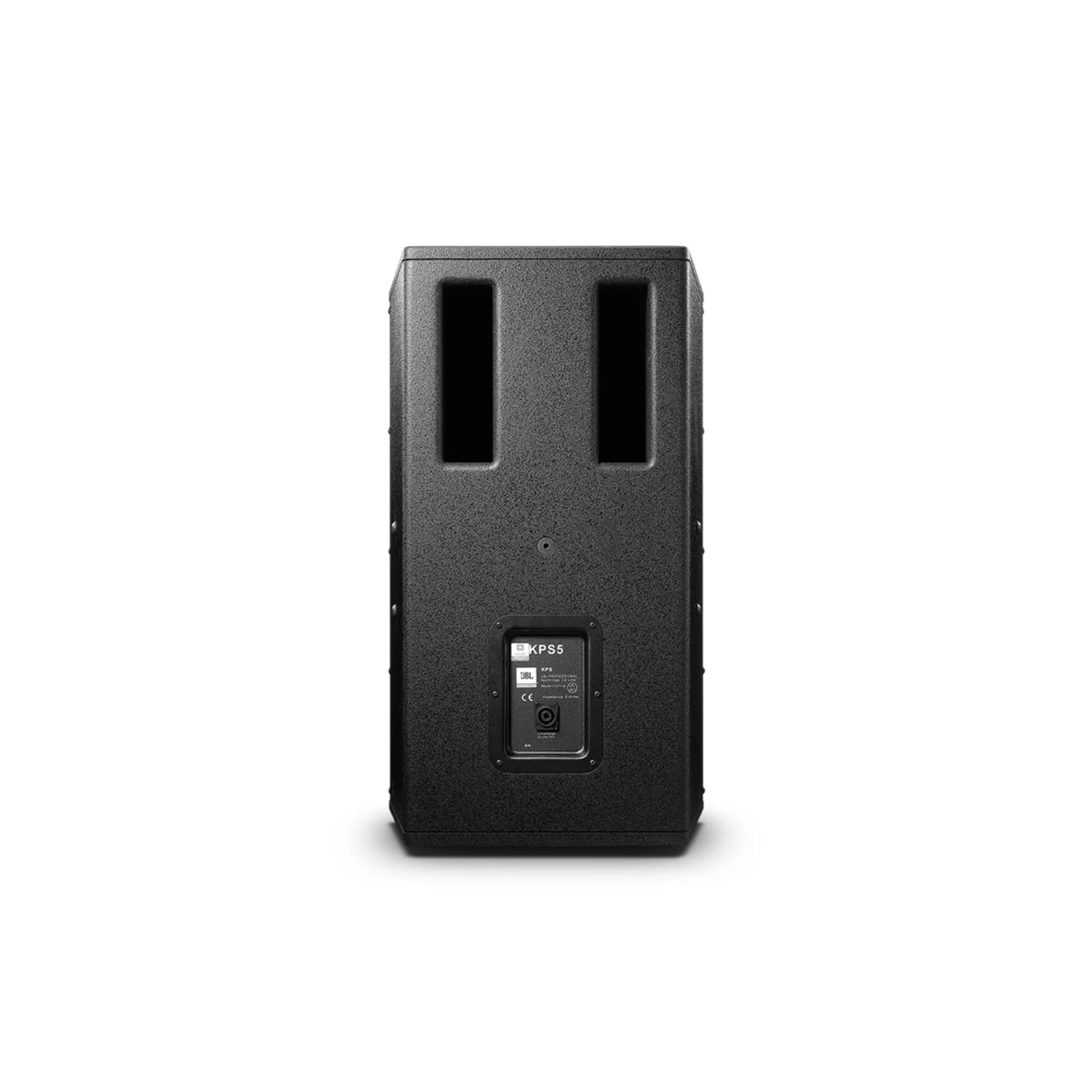

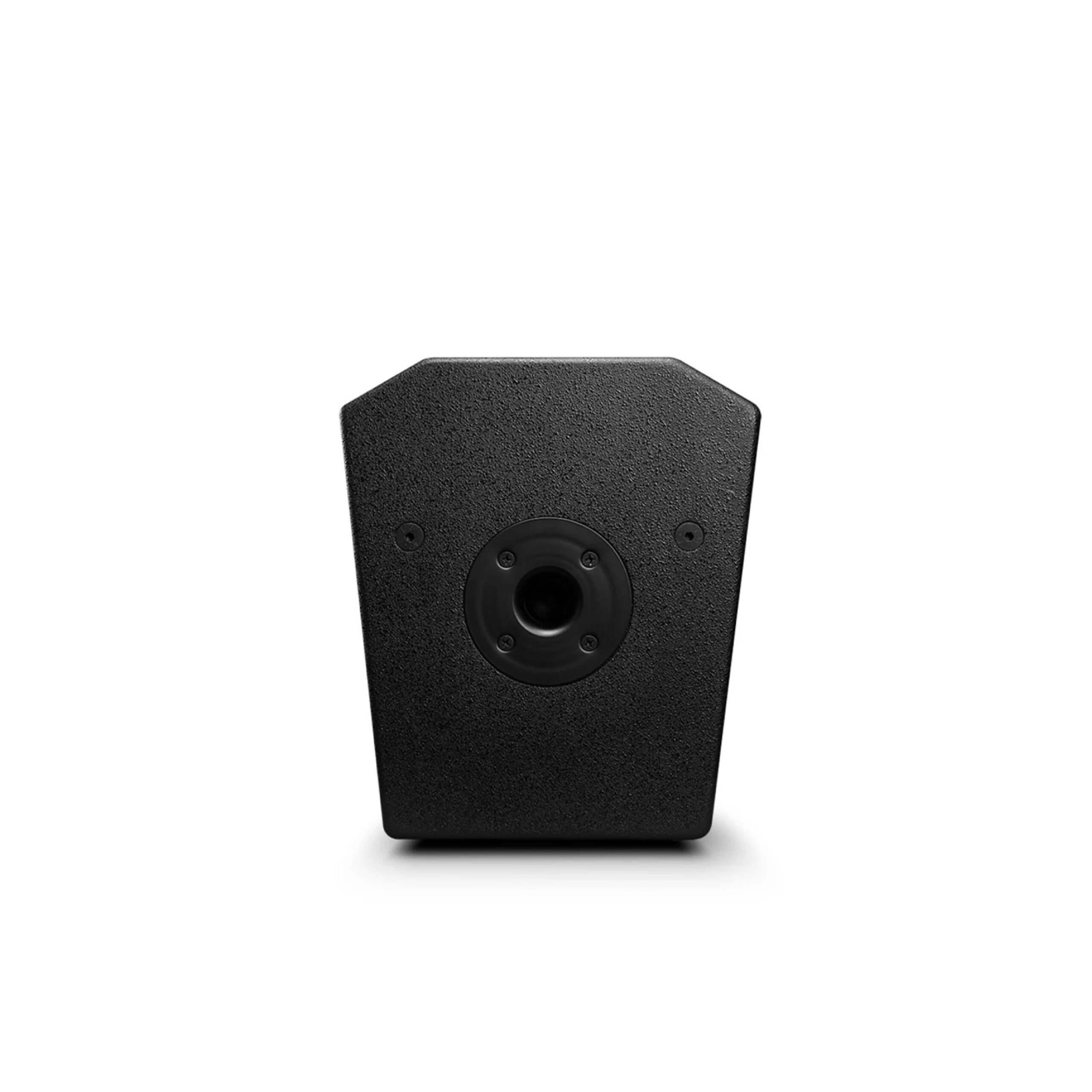

The KPS5 features a trapezoidal enclosure constructed from premium 15 mm wood panels. Its internal structure and transducer layout have been refined through multiple rounds of simulation and testing. The system includes multiple high-strength suspension points and an OmniMount socket for flying or pole-mount installation. To protect the system from accidental damage and drink spills, the grille is made from dent-resistant steel with acoustically transparent cloth backing. The sculpted front grille enhances the overall aesthetics, allowing the speaker to blend seamlessly into a variety of interior décors. JBL’s new illuminated logo, featuring PSL (Passive Sound Lighting) technology, lights up continuously when audio signals are present and can be rotated to match different installation orientations.
| Feature | Details |
|---|---|
| System Type | 3-way, Bass-Reflex |
| LF | (1) x 10″ Woofer |
| MF | (2) x 3″ Cone Tweeter |
| HF | (2) x 3″ Cone Tweeter |
| Frequency Range (-10dB) | 50 Hz – 17 kHz |
| Frequency Response | 48Hz – 18kHz |
| Impedance | 8 Ohms |
| Rated Power | 200 W |
| Sensitivity | 90 dB |
| Maximum SPL (1m) | 113 dB |
| Acoustic Port | Rear Facing |
| Logo | Illuminated |
| Inputs | Binding Post |
| Enclosure Construction | Vinyl Laminated MDF |
| Dimensions (H × W × D) | 292 mm × 521 mm × 320 mm 11.5 inch × 20.5 inch × 12.6 inch |
| Net Weight | 11 Kg (24.3 lbs) |
