The SA-12 represents FANE’s dedication to crafting premium-grade, high-powered full-range speakers tailored for upscale KTV venues, clubs, and dynamic nightclubs, meticulously designed for delivering top-tier performance.
At its forefront, the SA-12 features a 12-inch low-frequency driver with a bespoke 3-inch (76.2mm) voice coil from FANE, Harmoniously paired with a 1.75-inch compression driver with composite polymer diaphragm for precise and clear high-frequency delivery. These elements seamlessly integrate to offer a smooth frequency response, spanning from 50Hz to 20kHz (-10dB), while maintaining phase coherence. The high frequencies are channeled through a striking large horn with a consistent 80° (H) × 60° (V) constant directivity, ensuring even sound projection.
Designed to cater to various installation requirements, the SA-12 has practical M10 mounting points on its top and sides. Its versatile pole mount adds further adaptability. With a sensitivity of 96dB and an AES power rating of 450W, the SA-12 employs a rear-ported enclosure design which effectively minimizes group delay in the low-frequency range, enhancing the perception of low-frequency speed and reducing nonlinear distortion. The outcome is a captivating and agile low-frequency impact that effortlessly resonates in any acoustic environment.
The SA-12 excels in delivering rich and inviting mid-low frequencies, which harmonize beautifully with the clarity and brightness of its mid-high frequencies. While SA-12 shines as a standalone sound reinforcement speaker it intergrades seamlessly with any of the FPA subwoofers.

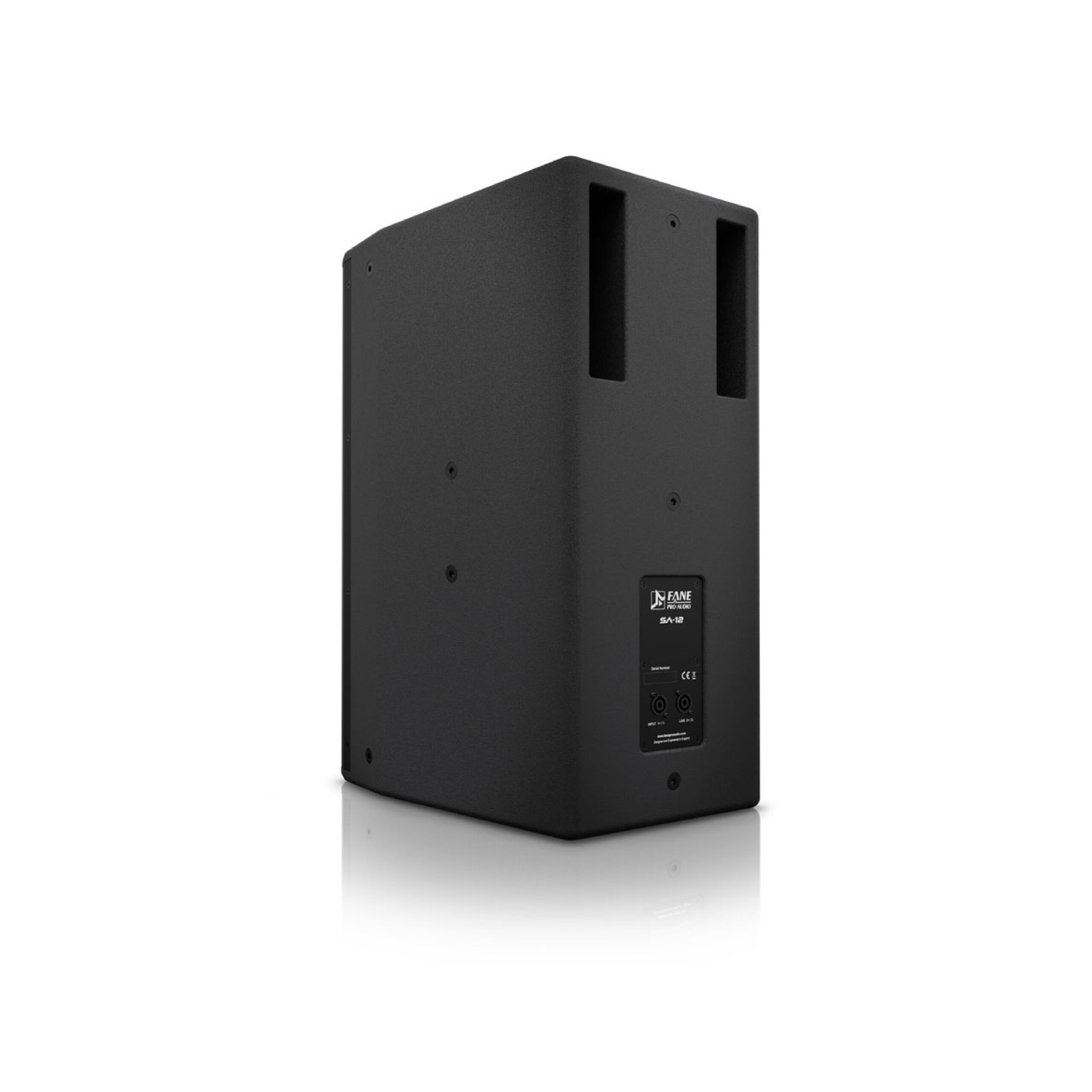

Constructed from 15mm birch plywood, finished in a durable black water-based paint. Two NL-4 sockets for seamless connectivity. Rotatable logo for versatility, fitted with a black perforated iron grille lined with acoustically transparent fabric.
| Feature | Details |
|---|---|
| Power Handling | 450 W (AES) |
| Program Power Handling | 900 W |
| Peak Power Handling | 1800 W |
| Nominal Impedance | 8 Ω |
| Average Sensitivity | 96 dB @ 1W/1m |
| Calculated Max SPL / 1m | 122 dB continuous |
| Max SPL (Program) | 125 dB (program) |
| Max SPL (Peak) | 128 dB (peak) |
| Frequency Response (-6dB) | 50 Hz – 18 kHz |
| Manufacturing Consistency | 200 Hz to 10 kHz (±3 dB) |
| Nominal Directivity (-6dB) | 80° (H) x 60° (V) |
| Recommended Amplifier | ≤ 800 W @ 8Ω (no clip) in specified frequency response |
| Recommended Low Cut (Full Range) | 50 Hz, 18 dB/oct Butterworth |
| Recommended Low Cut (with sub) | 70 to 140 Hz, 24 dB/oct Linkwitz-Riley |
| Crossover | Passive @ 2.2 kHz |
| Low Frequency Driver | Fane transducer, 8Ω impedance, 12” (300 mm) diameter, 3” high temperature voice coil on glass fibre former |
| High Frequency Driver | 1” (25 mm) exit, 1.75” (44 mm) voice coil, polymer diaphragm |
| Nominal Size | 12 Inch |
| Type | Two-Way, Passive |
| Feature | Details |
|---|---|
| Pole Mount | 35 mm |
| Flying Hardware | 13x M8 Internal mounting points, 6x M10 Internal mounting points |
| Connectors | 2 Neutrik Speakon NL4 |
| Cabinet | CNC made with tongue and groove assembly, 15 mm void-free, exterior grade, birch plywood |
| Finish | Black water-based paint |
| Cabinet Size (H x W x D) | 600 x 355 x 395 mm |
| Shipping Carton Size (H x W x D) | 690 x 405 x 445 mm |
| Net Weight | 22.5 kg net |
| Gross Weight | 25 kg gross |
