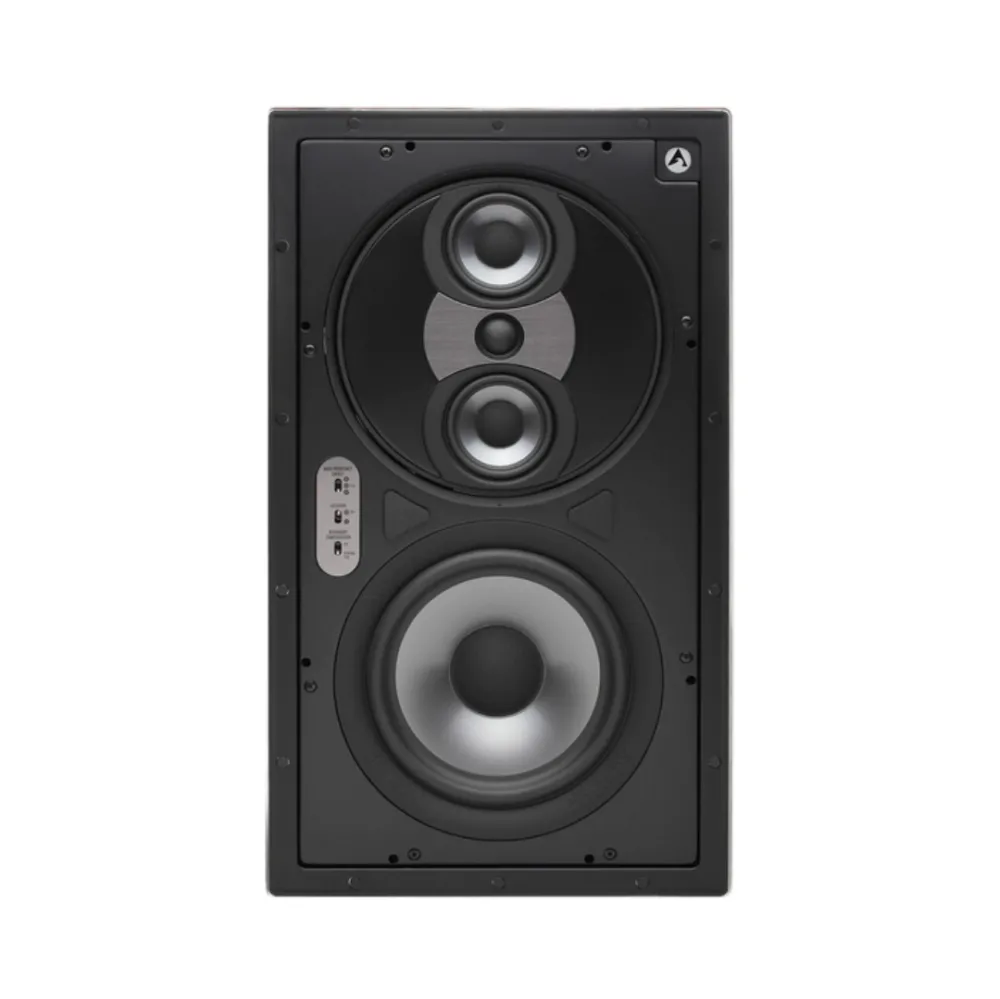

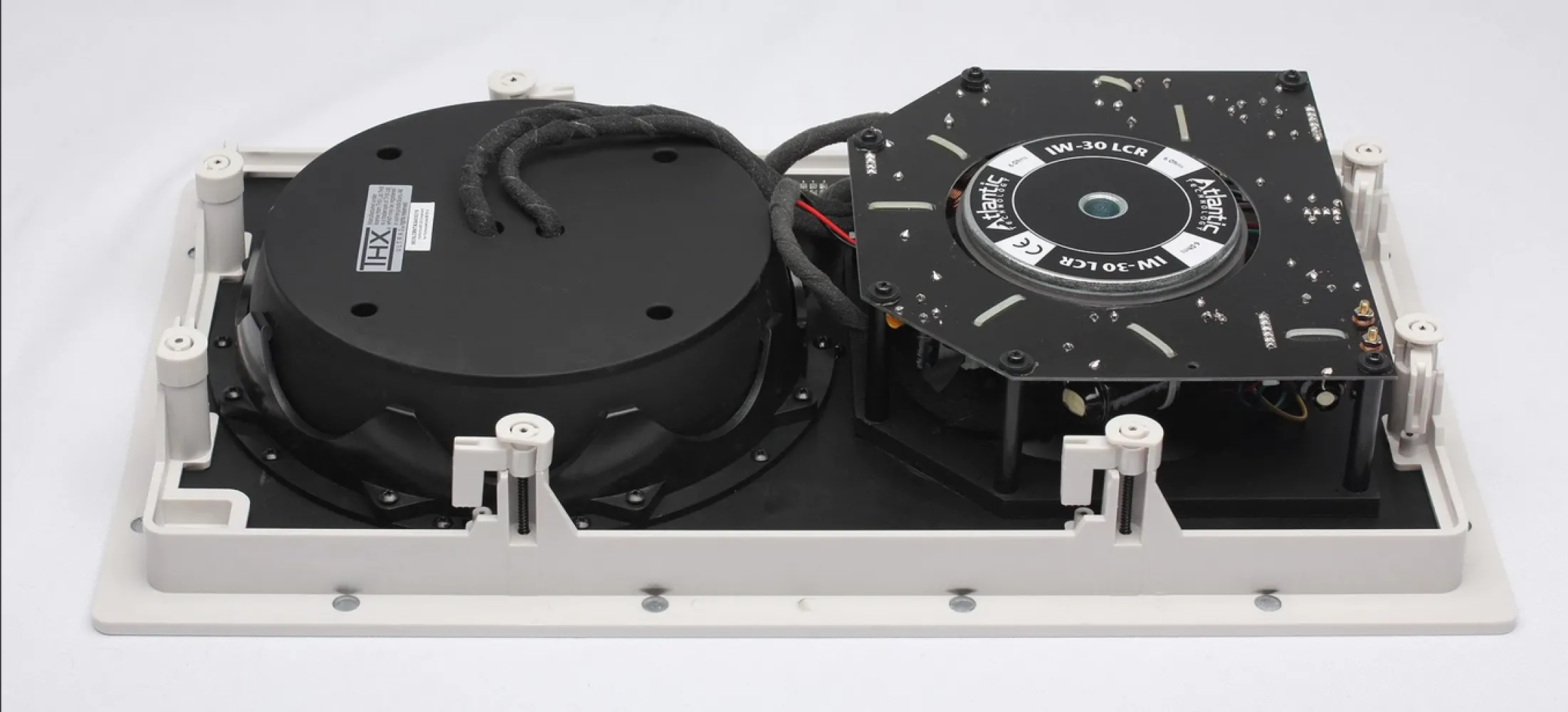

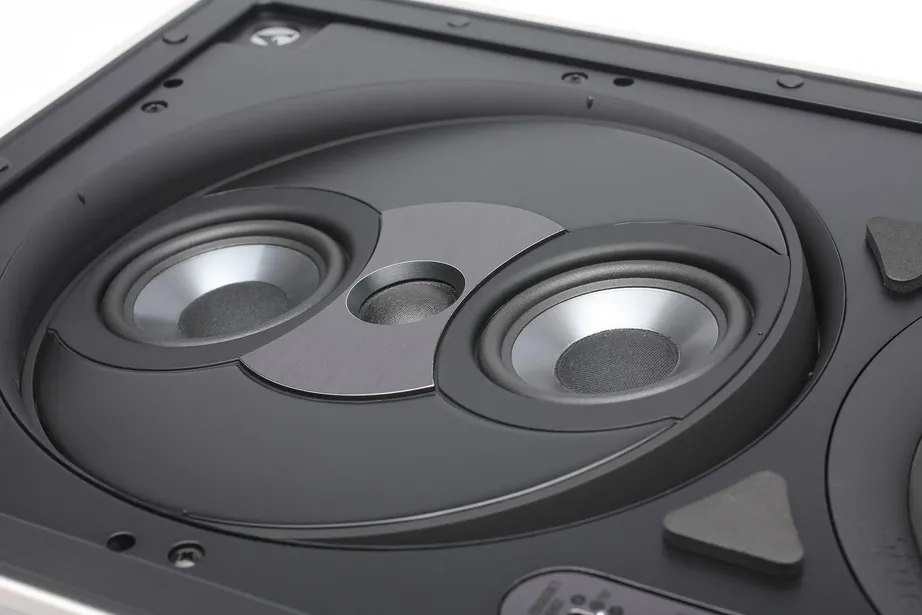

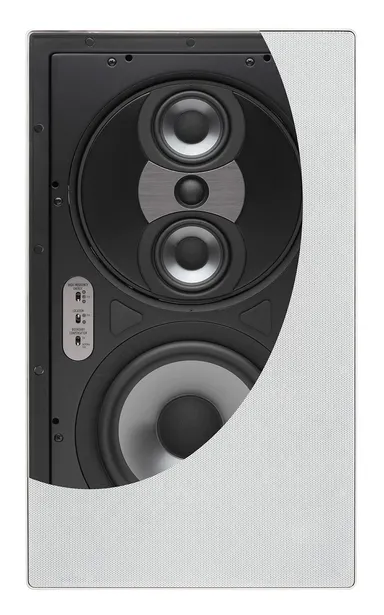

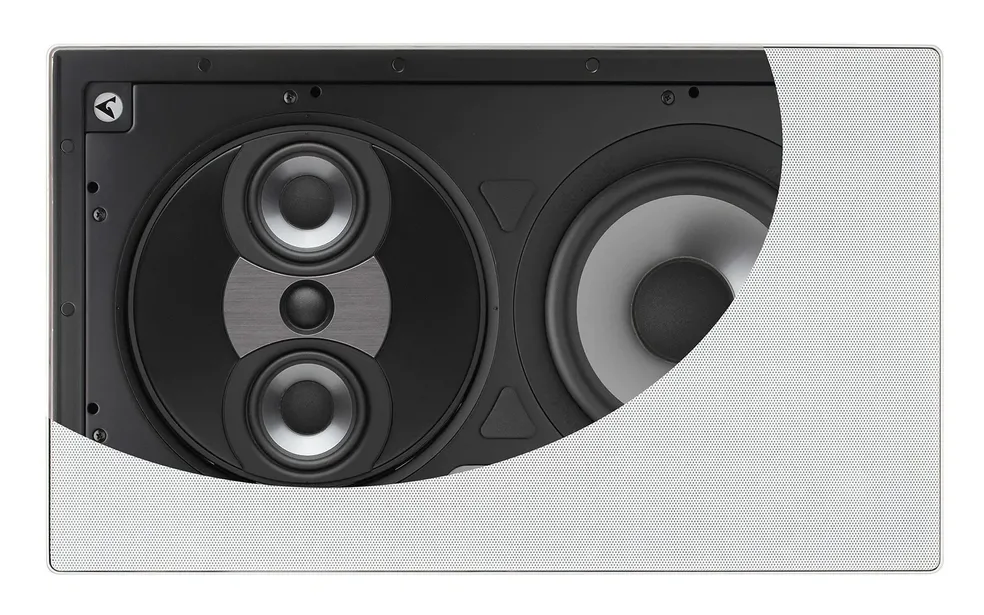

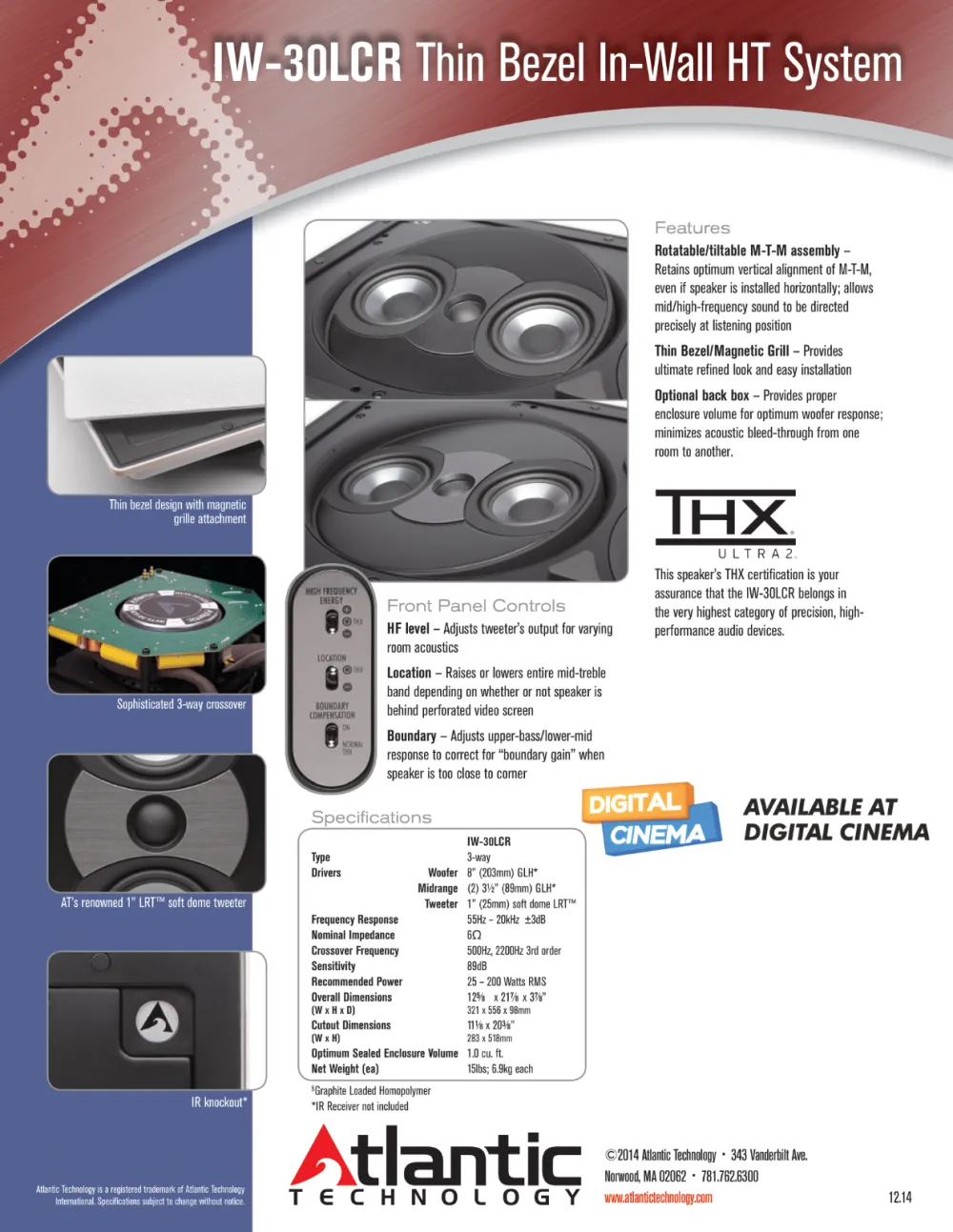

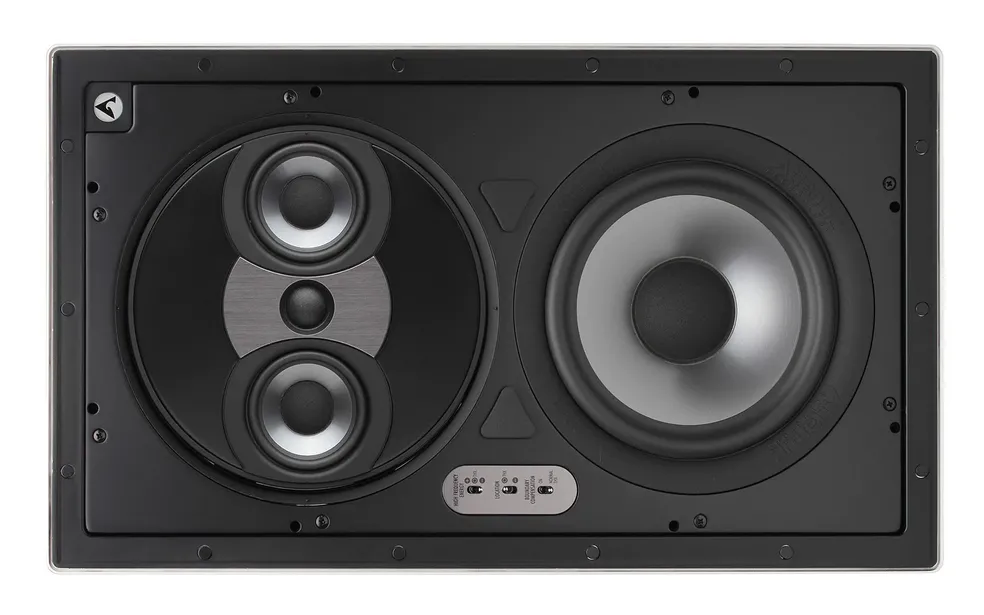

Experience the epitome of in-wall speaker performance with the IW-30 LCR, Atlantic Technology’s flagship architectural speaker. This THX Ultra 2-certified speaker, with its lineage tracing back to our esteemed System 8200e, delivers an audio experience that rivals the best freestanding speakers. Its 3-way design, featuring an 8″ woofer, dual 3 ½” midranges, and our exclusive LRT™ tweeter, is housed in a non-resonant MDF baffle for superior acoustic performance. The entire M-T-M assembly can rotate and tilt, ensuring precise sound direction regardless of the speaker’s placement. With its ultra-thin bezel and magnetic grille, the IW-30 LCR embodies the ultimate in stealth design.
| Feature | Details |
|---|---|
| Speaker Type | 3-Way In-Wall Speaker |
| Woofer | 8″ (203 mm) GLH* |
| Midrange | 2 × 3½” (89 mm) GLH* |
| Tweeter | 1″ (25 mm) Soft Dome LRT™ |
| Frequency Response | 55 Hz – 20 kHz (±3 dB) |
| Nominal Impedance | 6 Ω |
| Crossover Frequency | 500 Hz, 3000 Hz (3rd Order) |
| Sensitivity | 89 dB |
| Recommended Amplifier Power | 25 – 200 W RMS |
| Dimensions (W × H × D) | 319 × 554 × 100 mm (12 9/16″ × 21 13/16″ × 3 7/8″) |
| Cutout Dimensions (W × H) | 283 × 518 mm (11 1/8″ × 20 3/8″) |
| Weight (Each) | 6.9 kg (15 lbs) |
| Optional Back Box | IN-BOX-30LCR |
